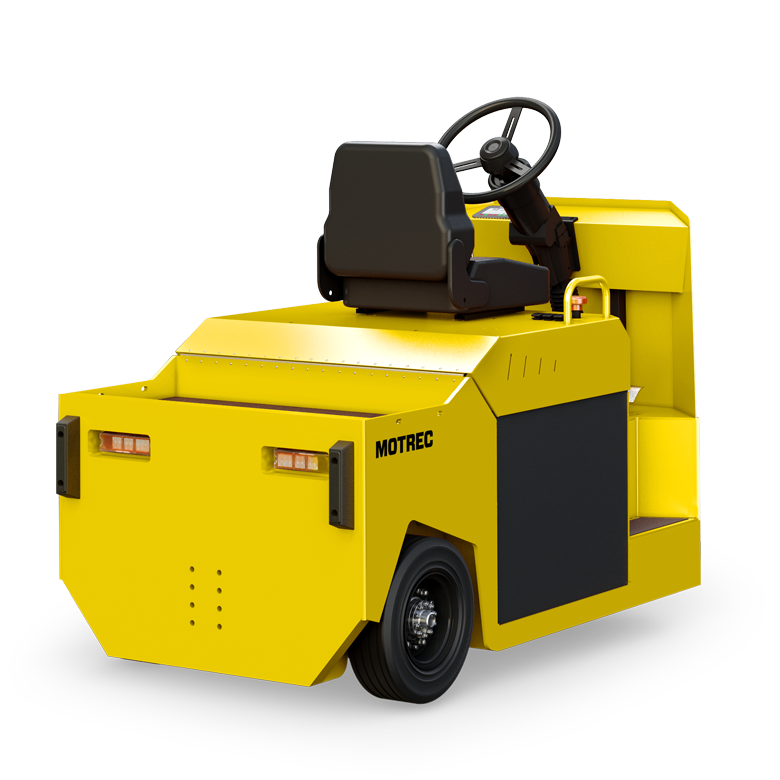

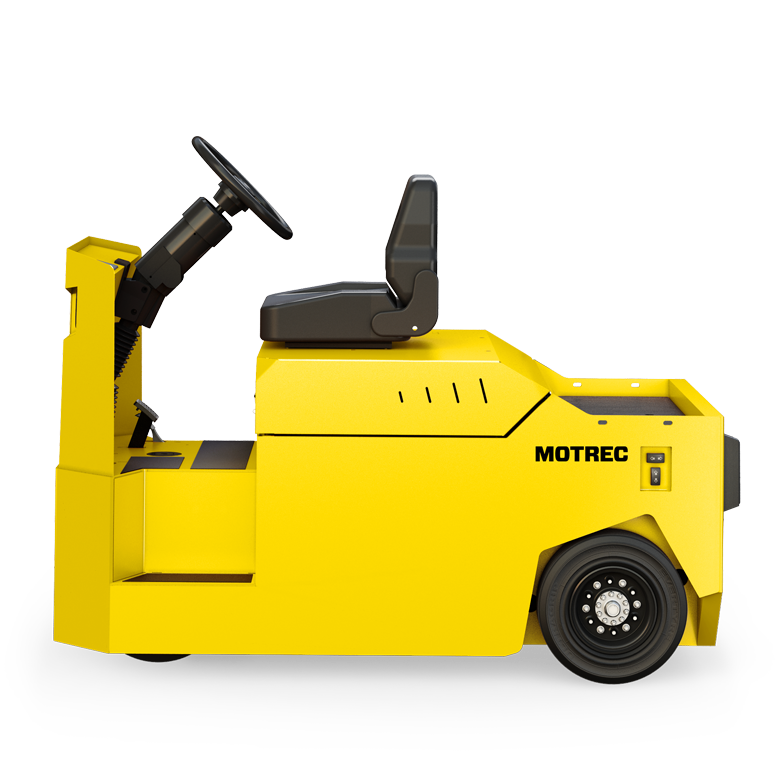

MT-340 Motrec

36V48V48V HD
POWERTRAIN
Motor10 HP brushless AC motor15 HP brushless AC motor15 HP brushless AC motor
Drive AxleHelical gear differentialHelical gear differentialHelical gear differential
TransmissionDirect driveDirect driveDirect drive
ControllerElectronic AC speed controllerElectronic AC speed controllerElectronic AC speed controller
ENERGY
Voltage36V48V48V
BatteryNo battery includedNo battery includedNo battery included
ChargerNo charger includedNo charger includedNo charger included
CHASSIS
BodyAll-steel unibody construction, 1″ rear-end plate, powder coatingAll-steel unibody construction, 1″ rear-end plate, powder coatingAll-steel unibody construction, 2″ rear-end plate, powder coating
SuspensionLeaf springs rear suspension systemLeaf springs rear suspension systemLeaf springs rear suspension system
BrakesRear wheel hydraulic drum brakes, regenerative brakingRear wheel hydraulic drum brakes, regenerative brakingRear wheel hydraulic drum brakes, regenerative braking
WheelsSolid tiresSolid tiresSolid tires
SteeringAutomotive steering wheelAutomotive steering wheelAutomotive steering wheel
SeatsSemi-suspension seat on slide adjustersSemi-suspension seat on slide adjustersSemi-suspension seat on slide adjusters
EQUIPMENT
LightsLED dual headlights & tail/brake lightsLED dual headlights & tail/brake lightsLED dual headlights & tail/brake lights
IndicatorsMultifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capabilityMultifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capabilityMultifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability
Accessories36V/12V converter for 12-volt accessories, backlit and sealed buttons48V/12V converter for 12-volt accessories, backlit and sealed buttons48V/12V converter for 12-volt accessories, backlit and sealed buttons
SafetyReverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptapeReverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptapeReverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape

Specifications and standard equipment are subject to change without notice.

Details

The industry benchmark for compact tow tractors has once again raised the bar. Still a quiet and low-maintenance workhorse with an unbeatable turning radius and up to 20,000-lb. towing capacity, but now with leaf spring suspension and shock absorbers, flat-free solid softy tires, inching control, protected electrical components and much more – all standard. Power and performance are delivered through a brushless AC powertrain with efficient direct-drive differential, hefty 1″ rear-end plate and large drum brakes. We’ve also got your back with a long list of standard ergonomic and safety features.

Equipment Type
Industrial Tow Tractors / Industrial Vehicles
