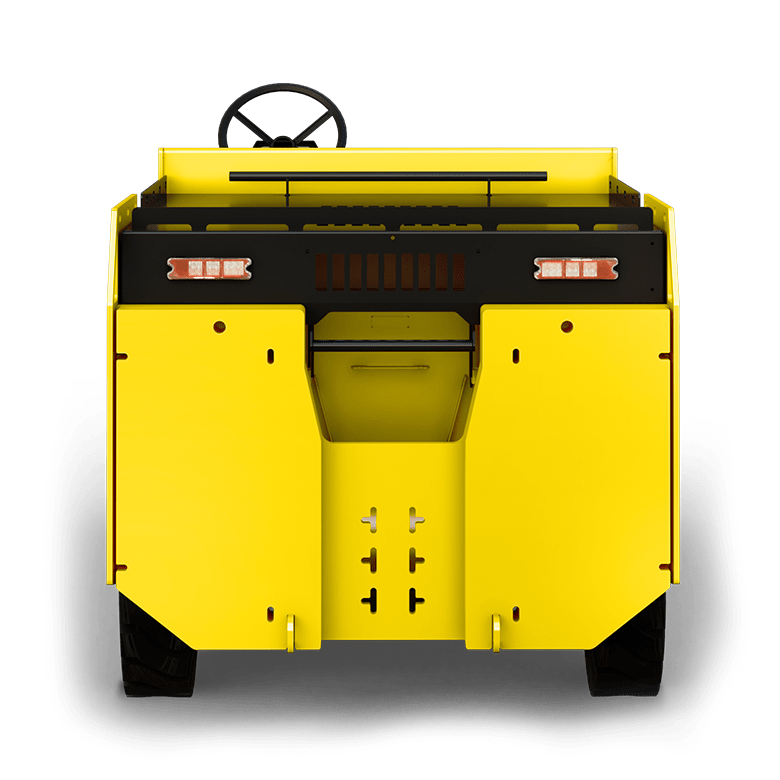

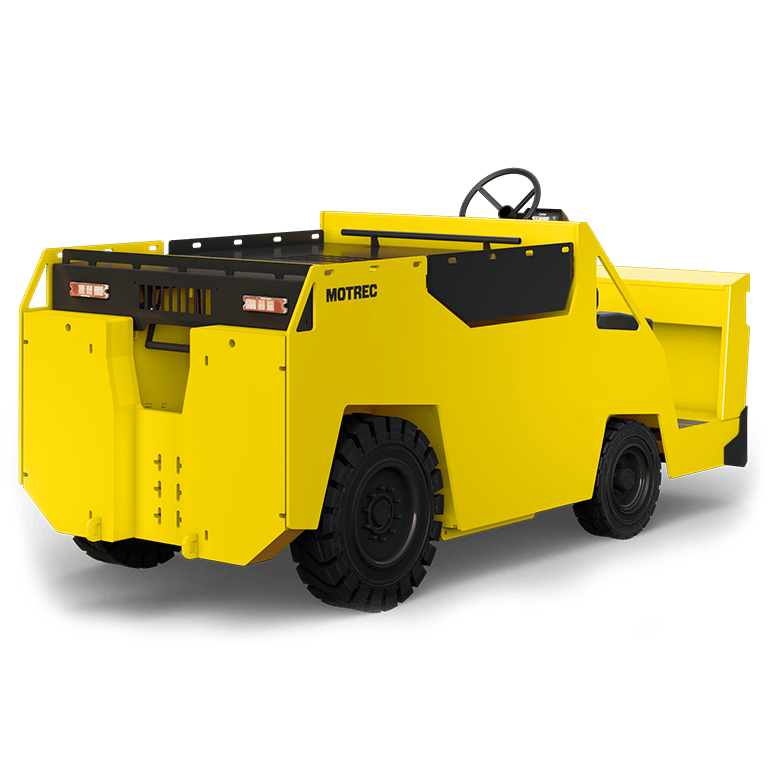

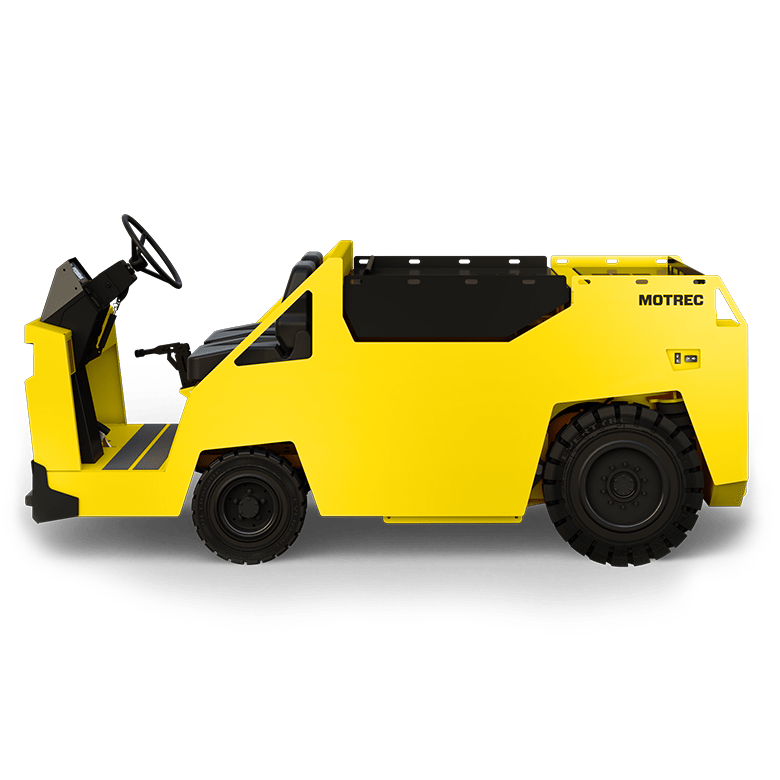

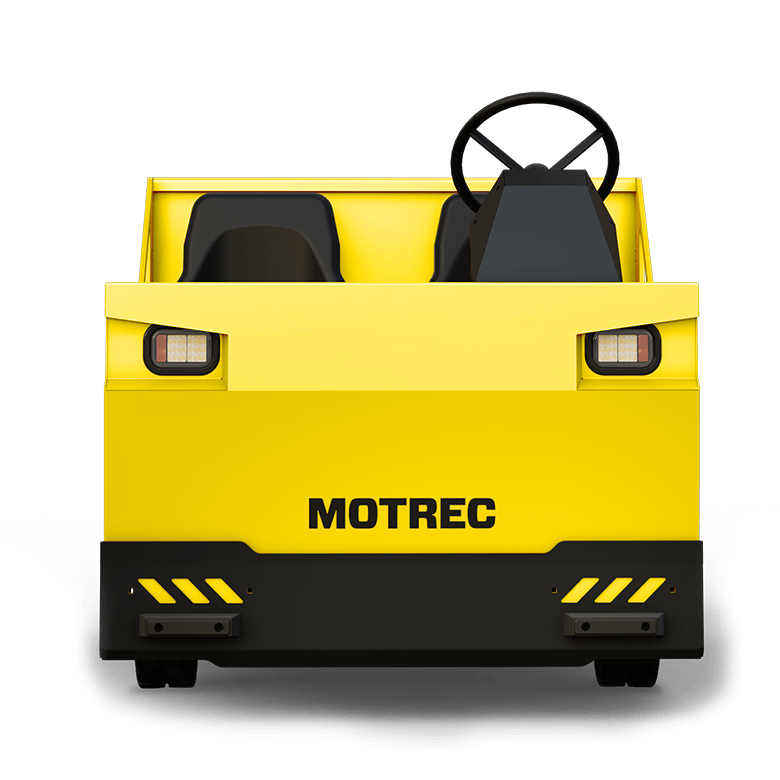

MT-800 Motrec

  • Two-seater vehicle
  • 50,000 lbs towing capacity
  • Large deck with 1,500 lbs cargo capacity
  • Ideal for cramped industrial settings
Motor 40 hp AC motor
Drive Axle Dual planetary wheel drives
Transmission Integrated motor/axle, direct drive
Controller Electronic speed controller, Inching controls on rear
Voltage 80V
Battery No battery included
Charger No charger included
Body All-steel unibody construction
Suspension Front leaf spring suspension with dual shock absorbers, rear rubber spring suspension
Brakes Electric regenerative braking, hydraulic brakes with front dry discs and rear wet discs, hand lever parking brake
Wheels Solid softy wheels, front 600×9, rear 700×12
Steering Power steering with hydrostatic orbitrol and hydraulic cylinder
Seats Two suspension seats on slide adjusters
Lights LED dual headlights & tail/brake lights, turn signals
Indicators Digital display, battery status, hour meter, Fault diagnostic
Accessories 80V/12V converter for 12-volt accessories, horn
Safety Deadman seat switch, reverse alarm

Specifications and standard equipment are subject to change without notice.


The MT-800 is a compact two-seater that’s engineered to deliver massive towing power in cramped industrial settings. Its 40 hp AC direct-drive motor easily hauls long, heavy loads up to 50,000 lbs. Its dual planetary wheel drive with enclosed wet disks reduces maintenance. Its electric regenerative brakes lengthen running time. And its thick, one-piece welded steel plate chassis – reinforced at all high-stress areas – makes this rugged workhorse virtually indestructible.

Equipment Type
Industrial Tow Tractors / Industrial Vehicles
