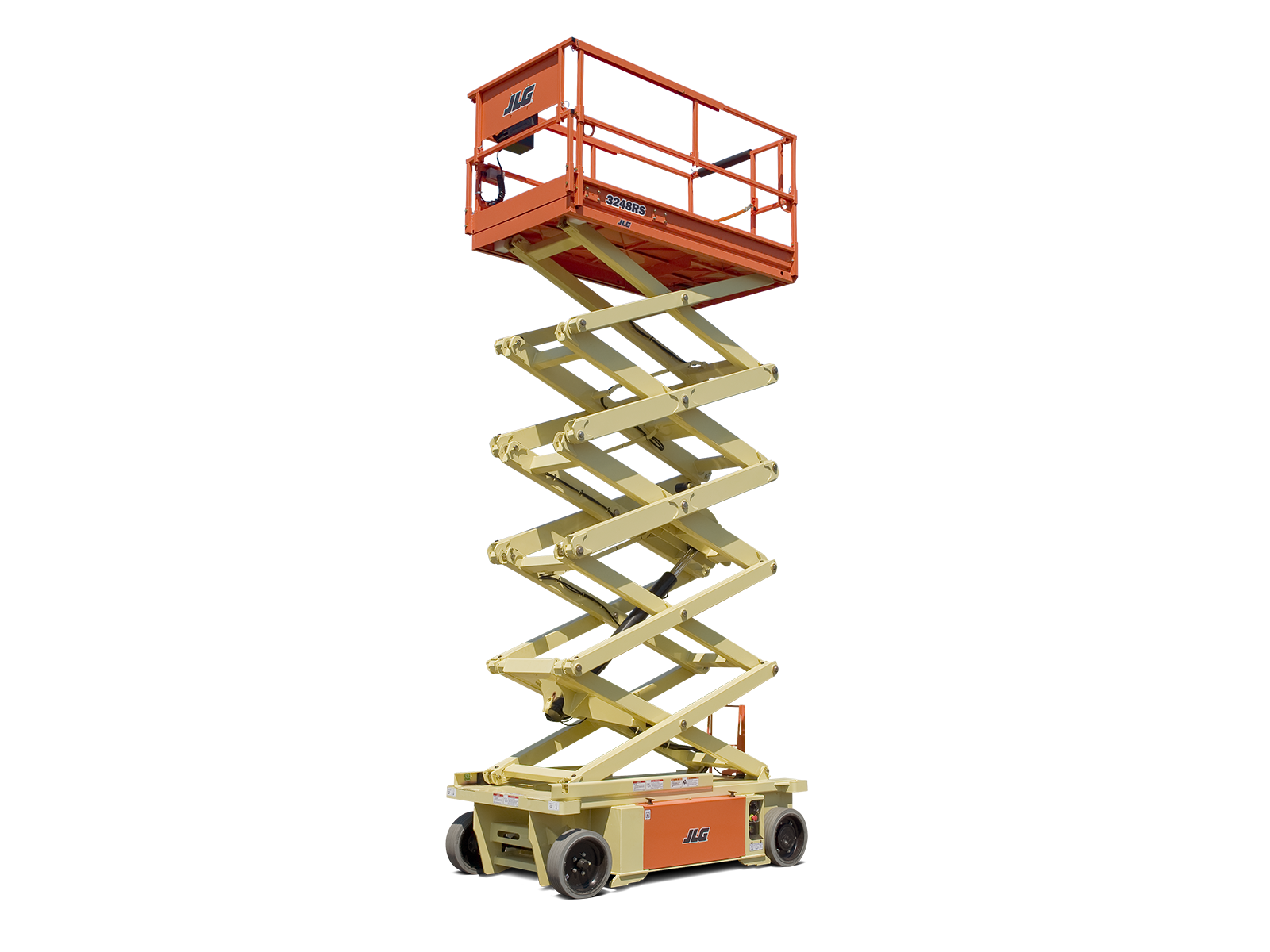

3248RS JLG

Back to Inventory
  • Innovative operator controls, similar to the ES Series, and compact dimensions enable travel through doorways
  • The direct electric drive delivers industry-leading duty cycles
  • Passive pothole protection eliminates all moving parts in the pothole protection system, reducing the need for repair or replacement
  • Ability to traverse grades of up to 25%
  • Battery storage areas are easily accessible and have no drawers to pull out
  • Leak points are minimized with a design that includes 4 hydraulic hoses
  • Batteries: 4 x 6V, 220 amp-hour
  • Brakes: Electric, Friction
  • Capacity – Hydraulic Reservoir: 2 gal. / 9.01 L
  • Charger: 25 amp
  • Drive Speed – Platform Elevated: 0.30 mph / 0.48 km/h
  • Drive Speed – Platform Lowered: 2.50 mph / 4.02 km/h
  • Gradeability: 25 %
  • Ground Bearing Pressure: 90 psi / 6.30 Kg/cm2
  • Ground Clearance: 4 in. / 0.1 m
  • Hydraulic Pump: Fixed Displacement Gear
  • Lift Time: 60 sec.
  • Lower Time: 60 sec.
  • Machine Height: 7 ft 11 in. / 2.41 m
  • Machine Height – Rails Folded: 6 ft 6 in. / 1.98 m
  • Machine Length: 7 ft 7 in. / 2.3 m
  • Machine Weight: 6050 lb / 2744.23 kg
  • Machine Width: 4 ft / 1.22 m
  • Maximum Drive Height: 32 ft / 9.75 m
  • Maximum Lift Height: 32 ft / 9.75 m
  • Platform Capacity – Extension: 250 lb / 113.40 kg
  • Platform Capacity – Unrestricted: 705 lb / 319.78 kg
  • Platform Dimension A: 7 ft 1 in. / 2.15 m
  • Platform Dimension B: 3 ft 7 in. / 1.08 m
  • Platform Extension Length: 3 ft / 0.91 m
  • Platform Height: 32 ft / 9.75 m
  • Platform Height: 32 ft / 9.75 m
  • Platform Height – Lowered: 4 ft 7 in. / 1.4 m
  • Platform Railing Height: 3 ft 5 in. / 1.03 m
  • Tire Size: 16 x 5 in
  • Turning Radius – Outside: 10 ft 5 in. / 3.18 m
  • Wheelbase: 6 ft 1 in. / 1.85 m
  • Working Height: 38 ft / 11.58 m
Details

Enhance your productivity with less recharging and more uptime with JLG® electric scissor lifts. These machines are designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions. Also, the innovative operator controls and compact dimensions make this series extremely mobile.

Equipment Type
Aerial Lifts / Scissor Lifts
