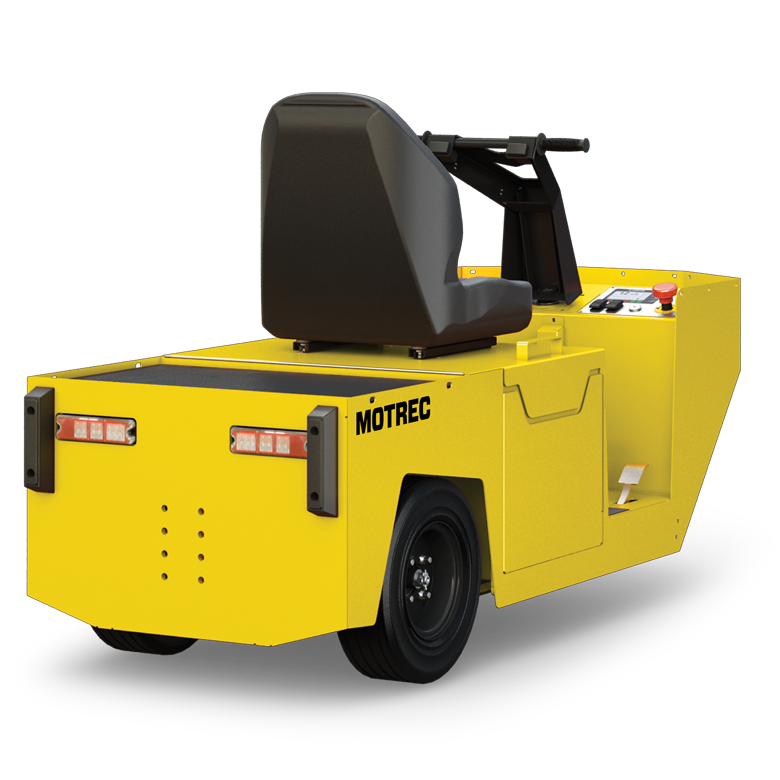

MT-180 Motrec

Back to Inventory
36V 48V
POWERTRAIN
Motor 10 HP brushless AC motor 15 HP brushless AC motor
Drive Axle Helical gear differential Helical gear differential
Transmission Direct drive Direct drive
Controller Electronic AC speed controller Electronic AC speed controller
ENERGY
Voltage 36V 48V
Battery Six 6V-225AH batteries 48V TPPL battery pack, 157AH
Charger High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
CHASSIS
Body All-steel unibody construction All-steel unibody construction
Suspension Coil spring and shock absorbers on front, leaf spring on rear Coil spring and shock absorbers on front, leaf spring on rear
Brakes Front drum brake, Regenerative braking, electromagnetic parking brake. Front drum brake, Regenerative braking, electromagnetic parking brake.
Wheels 4.8×8 LRC pneumatic tires 4.8×8 LRC pneumatic tires
Steering Handlebar Handlebar
Seats Bucket seat on slide adjusters Bucket seat on slide adjusters
EQUIPMENT
Lights Dual LED headlights & tail/brake lights Dual LED headlights & tail/brake lights
Indicators Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories 36V/12V converter for 12-volt accessories, front and rear rubber bumpers 48V/12V converter for 12-volt accessories, front and rear rubber bumpers
Safety Reverse Alarm, Deadman Seat Switch, Emergency Stop Button, Horn Reverse Alarm, Deadman Seat Switch, Emergency Stop Button, Horn

Specifications and standard equipment are subject to change without notice.

Details

This hardworking tow tractor delivers outstanding performance. With its efficient motor and 10,000-lbs. towing capacity, the MT-180 is ideal for moving trailers. It’s also narrow enough to fit through most door openings. From its all-steel construction to its all-wheel braking, this tugger is built for years of heavy use in total comfort and safety. All this combined with superior AC technology makes short work of tough requests.

Equipment Type
Industrial Tow Tractors / Industrial Vehicles
