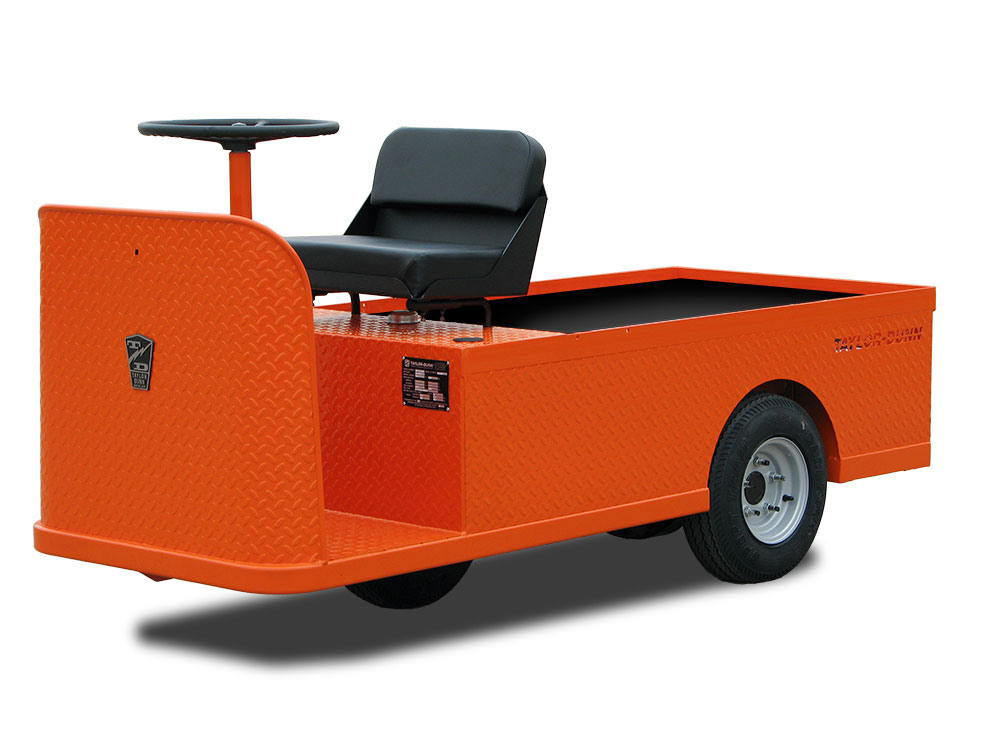

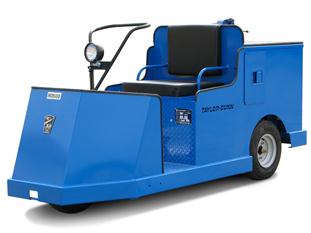

BIGFOOT XL Taylor-Dunn

  • Battery: Type: 260 Amp-hour, T145, 8 each, 6 volt System Voltage: 48V Charger: Built-in, 48V, 115 VAC/60 Hz, 1 kW w/ Interlock, 17 Amp SCR
  • Brakes: Rear: Hydraulic Disc Front: Hydraulic Disc Parking: Electric
  • Deck: Width: 54 in (137 cm) Length: 77 in (196 cm) Height: 27.5 in (70 cm)
  • Frame Construction: 12 Gauge, Smooth Skin, Unitized, Fully Welded, Steel
  • Height: Less Cab: 52 in (132 cm) With Cab: 74 in (188 cm)
  • Hitch Height: 12.5 in (32 cm)
  • Instrumentation: Clear View Display (speed, distance, battery status, hours, input diagnostic, and fault code display), Dual USB Port, Emergency Power Cut-off Switch, Light Switch, Forward/Off/Reverse Selector, Reverse Alarm, High/Low Speed Selector, Key Switch, DC/DC Converter (on with key switch), and Electric Horn
  • Length: 130.5 in (331 cm)
  • Load Capacity: 3,000 lb (1361 kg)
  • Outside Turning Radius: 145 in (368 cm)
  • Passengers: 2
  • Powertrain: Type: Electric Power: 115 VAC, 60 Hz Transmission: Drive: Helical Gear, Oil Bath Transaxle, GT Automotive Differential Controller: Solid State Self Diagnostic AC Speed Controller
  • Range: 40 miles (64 km)
  • Seats: Driver: Black Adjustable Bucket Seat, Driver’s Seat Electrical Interlock Passenger: Black Adjustable Bucket Seat
  • Speed: 18 mph (29 km/h)
  • Steering: Rack and Pinion
  • Suspension: Rear: Multi-leaf Spring Front: Multi-leaf Spring
  • Tires: Rear: 20.5 x 8 x 10, Load Range E. Pneumatic Front: 20.5 x 8 x 10, Load Range E. Pneumatic
  • Tow Capacity: 10,000 lb (4536 kg)
  • Weight: 1965 lb (891 kg)
  • Wheel Base: 62 in (157 cm)
  • Width: 54 in (137 cm)
Details

Available customizations include deluxe cab, econo cab, fold-away second seat, steel panel box. lockable cargo box, stake sides and aluminum drop-down sides

Equipment Type
Industrial Vehicles / Utility Vehicles
