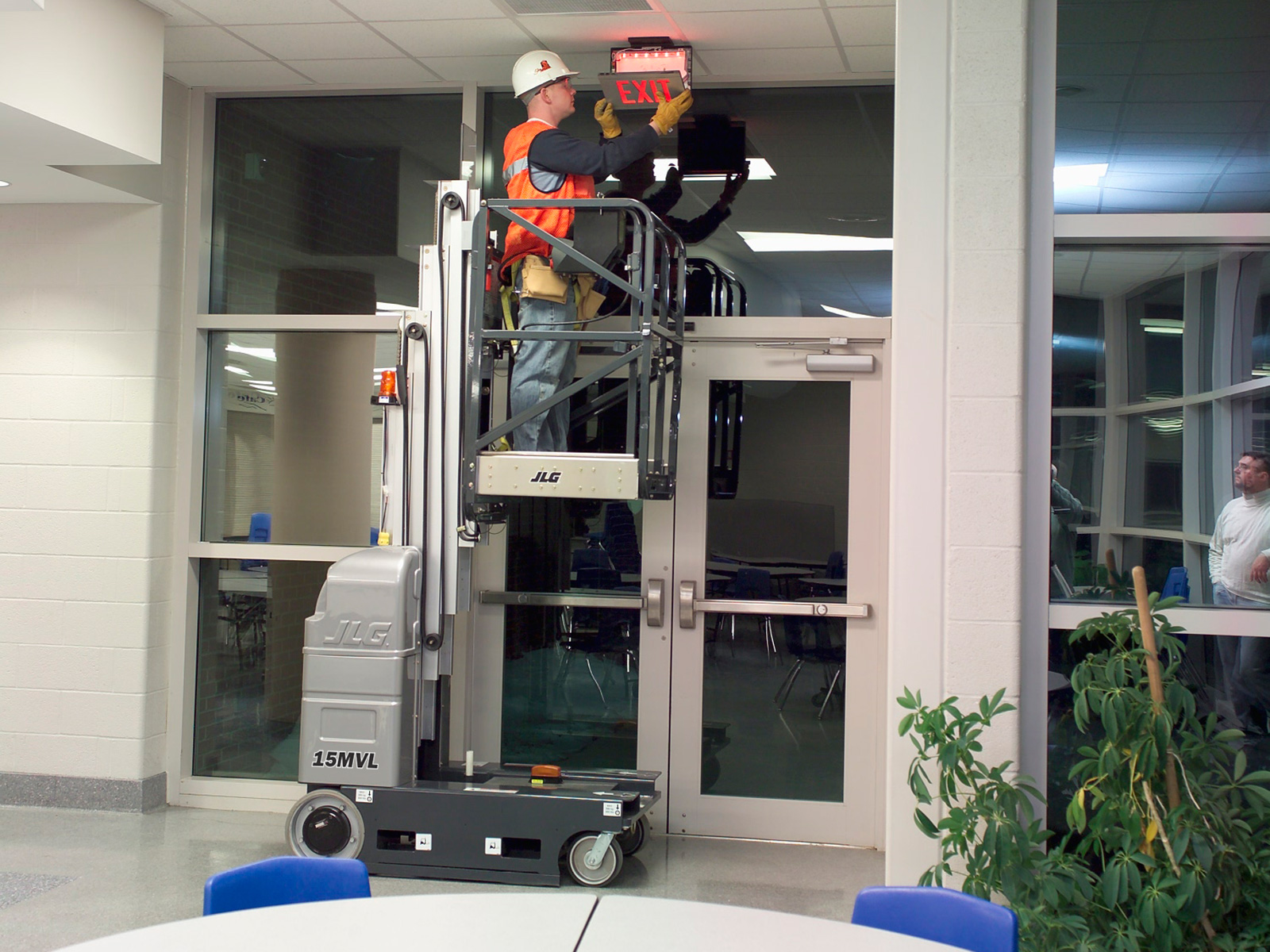

15MVL JLG

  • Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
  • Rigid mast for operator comfort and stability
  • Exclusive Point & Go® single joystick control operates drive and steer, and lift and lower
  • Batteries: Two Sealed 100 AH 12 Volt
  • Drive Speed – Platform Elevated: 0.6 mph / 0.97 km/h
  • Drive Speed – Platform Lowered: 3.5 mph / 5.63 km/h
  • Drive System: 4 Brush Direct Electric
  • Gradeability: 20 %
  • Ground Clearance: 2 in. / 0.05 m
  • Ground Entry Height: 1 ft 7 in. / 0.48 m
  • Machine Height: 6 ft 6 in. / 1.98 m
  • Machine Length: 4 ft 6 in. / 1.36 m
  • Machine Weight: 2325 lb / 1054.60 kg
  • Machine Width: 2 ft 6 in. / 0.75 m
  • Maximum Drive Height: 15 ft 4 in. / 4.67 m
  • Maximum Lift Height: 15.3 ft / 4.66 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 2 in. / 0.66 m
  • Platform Dimension B: 2 ft 4 in. / 0.71 m
  • Wheel Size – Front Caster: 8 x 2.5"
  • Wheel Size – Rear: 12.62 x 4"
  • Working Height: 21 ft 4 in. / 6.5 m
Details
Equipment Type
Aerial Lifts / Vertical Mast Lifts
