20AM JLG

  • Most rigid mast in the industry for operator comfort and stability
  • Long battery duty cycles and an automatic charger for more productivity
  • Six-wheel design for improved maneuverability
  • Ground Entry Height: 1 ft 7 in. / 0.48 m
  • Machine Height: 6 ft 6 in. / 1.97 m
  • Machine Length: 3 ft 11 in. / 1.19 m
  • Machine Weight-AC: 740 lb / 335.66 kg
  • Machine Weight-DC: 860 lb / 390.09 kg
  • Machine Width: 2 ft 5 in. / 0.74 m
  • Outrigger Footprint Length: 5 ft 2 in. / 1.57 m
  • Outrigger Footprint Width: 4 ft 5 in. / 1.35 m
  • Outriggers or Stabilizers: Yes
  • Outriggers Up Max Lift Height: 20 ft / 6.22 m
  • Platform Capacity: 350 lb / 158.76 kg
  • Platform Dimension A: 2 ft 2 in. / 0.66 m
  • Platform Dimension B: 2 ft 2 in. / 0.65 m
  • Platform Height: 20 ft 5 in. / 6.22 m
  • Platform Height: 20 ft 5 in. / 6.22 m
  • Wheel Size – Front Caster: 6 x 2″
  • Wheel SIze – Rear: 10 x 2″
  • Working Height: 26 ft / 7.92 m
Details

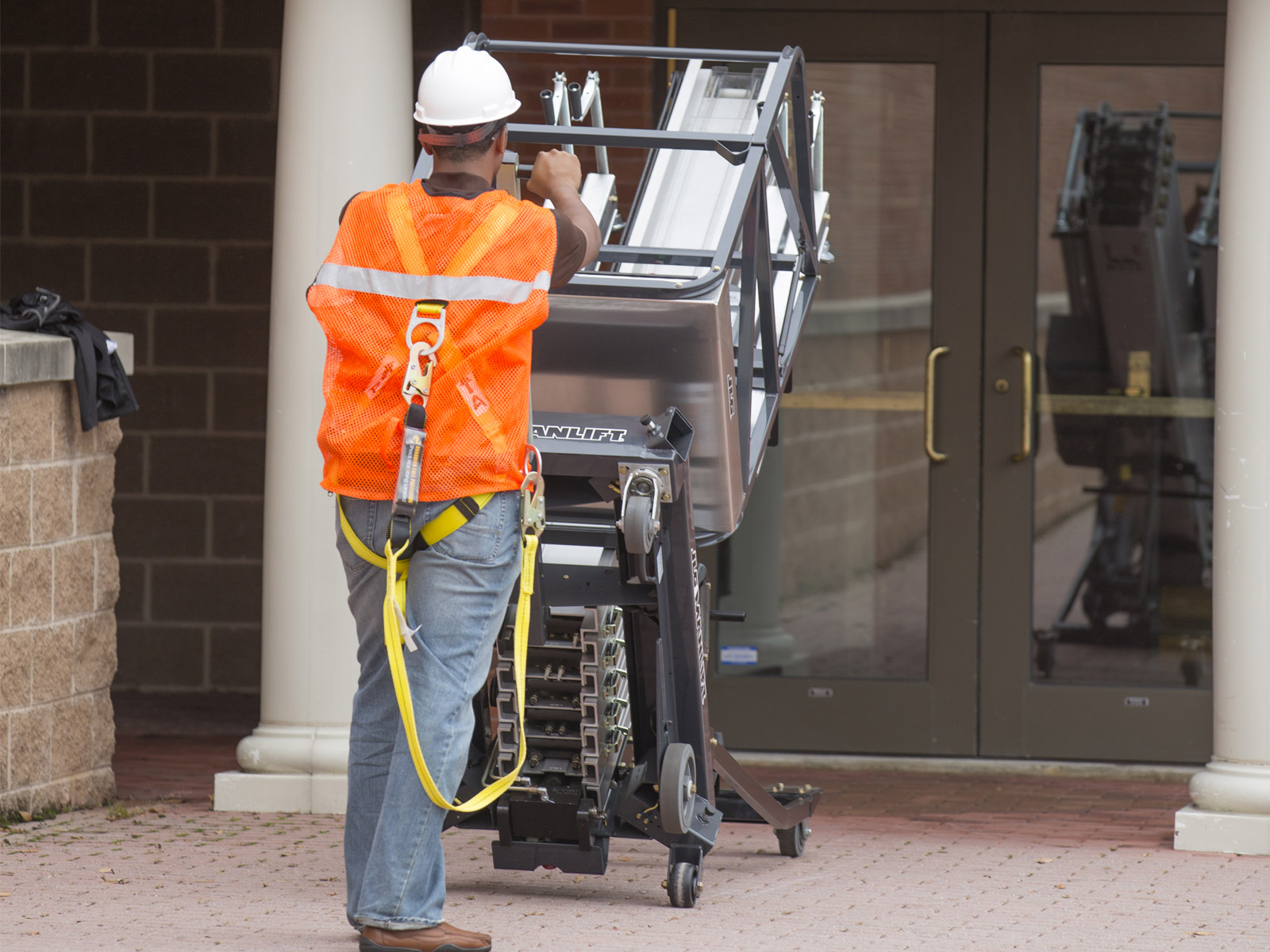

The AM Series (AccessMaster®) push-around vertical lifts deliver a whole new level of value and performance. Available in six models, they’re an ideal choice for a low-cost solution to overhead work and maintenance applications. All AM and AMI Series are easy to transport, and you can change your platform-without any tools-in less than a minute, to suit your specific application needs.

Equipment Type
Aerial Lifts / Vertical Mast Lifts
