ZX-135/70 Genie

  • Mini Genie X-Chassis™ system extends and retracts to provide both stability on the job and a narrow profile for transport
  • Telescoping Jib-Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion
  • 360˚ continuous rotation turntable and 160˚ platform rotation for fast, easy positioning
  • Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability
  • Below Ground Reach: 19 ft 3 in / 5.87 m
  • Max Horizontal Reach: 69 ft 9 in / 21.26 m
  • Max Up and Over Clearance (riser extended): 75 ft 6 in / 23.01 m
  • Max Working Height: 141 ft / 43.15 m
  • Platform Capacity: 600 lb / 272 kg
Details

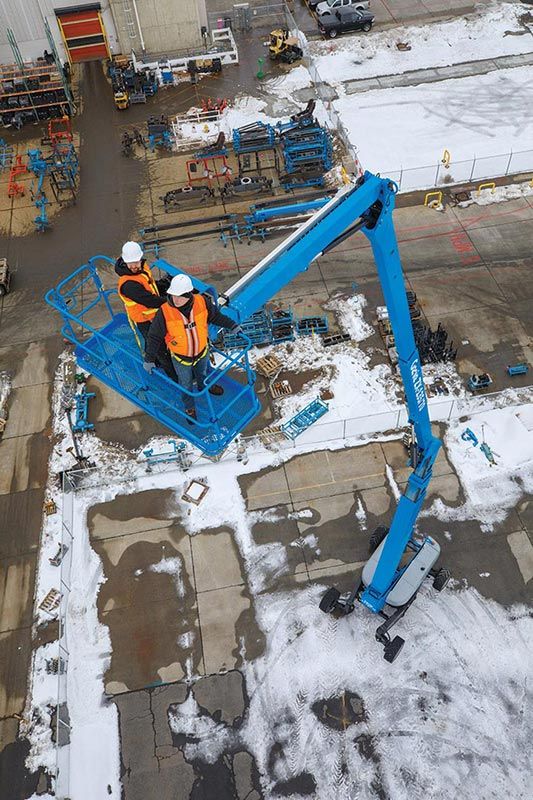

Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.

Equipment Type
Aerial Lifts / Articulating Booms
