MX-480 Ambulance Motrec
| 48V | |
|---|---|
| POWERTRAIN | |
| Motor | 15 hp Brushless AC motor |
| Drive Axle | Helical gear differential |
| Transmission | Direct drive |
| Controller | AC Electronic speed controller |
| ENERGY | |
| Voltage | 48V |
| Battery | Eight 6V-225AH batteries |
| Charger | High-frequency charger (85-265VAC / 45-65Hz, 1kw), Built-in and automatic |
| CHASSIS | |
| Body | All-steel unibody construction, Powder coating |
| Suspension | Rear dual leaf springs suspension, Front dual leaf springs suspension |
| Brakes | Rear hydraulic drum brakes, Electromagnetic parking brake with manual hand release, Regenerative braking |
| Wheels | 5.7×8 LRD pneumatic tires |
| Steering | Automotive steering wheel, Tilted steering column |
| Seats | Two bucket seats on slide adjusters |
| EQUIPMENT | |
| Lights | Dual LED headlights, Tail/brake lights, Dual back-up lights |
| Indicators | Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability |
| Accessories | Console on steering column, Bolt-on front bumper, DC/DC converter, LED charge indicator |
| Safety | Deadman seat switch, Reverse alarm |
| Specifications and standard equipment are subject to change without notice. | |
Details

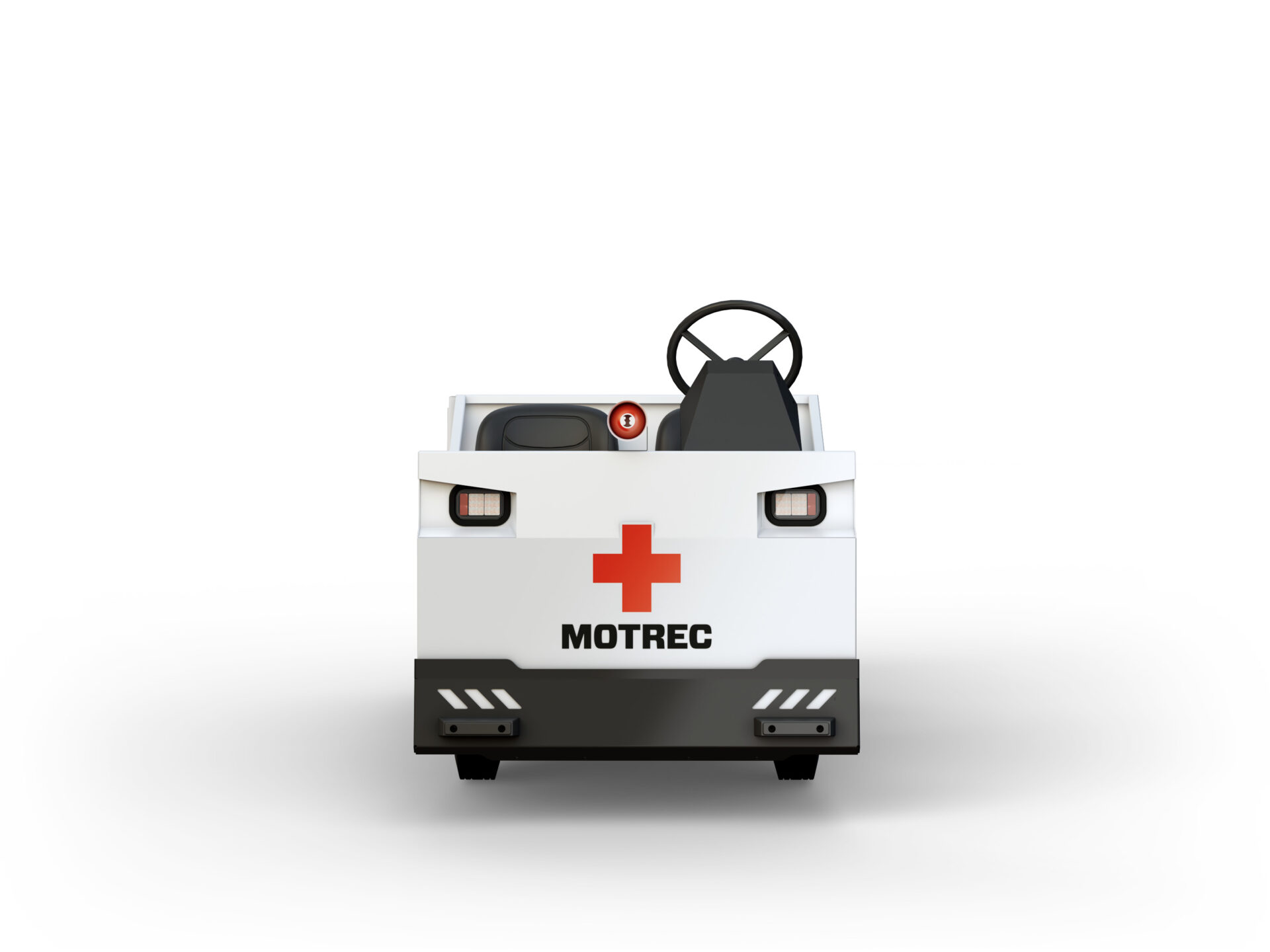

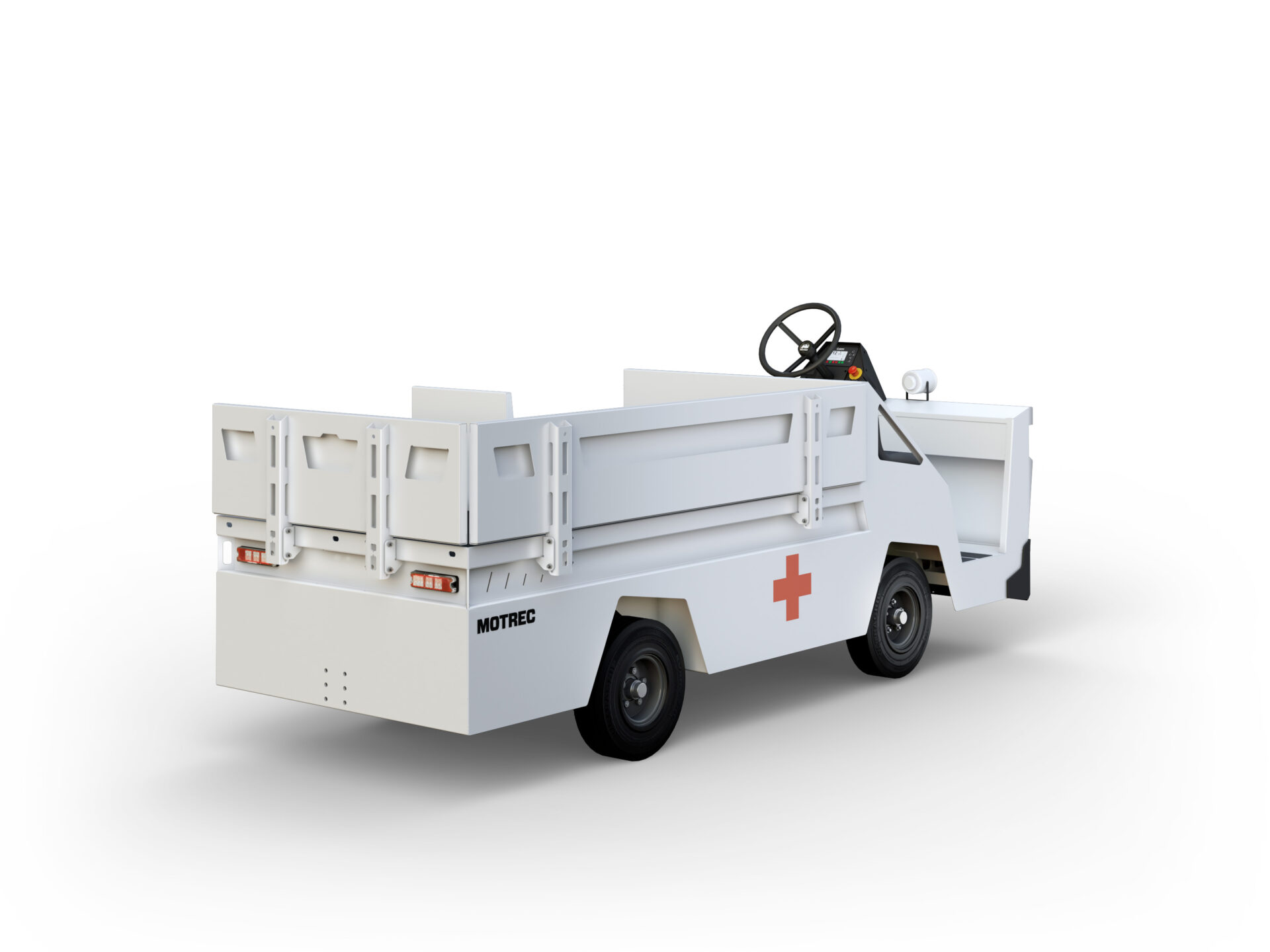

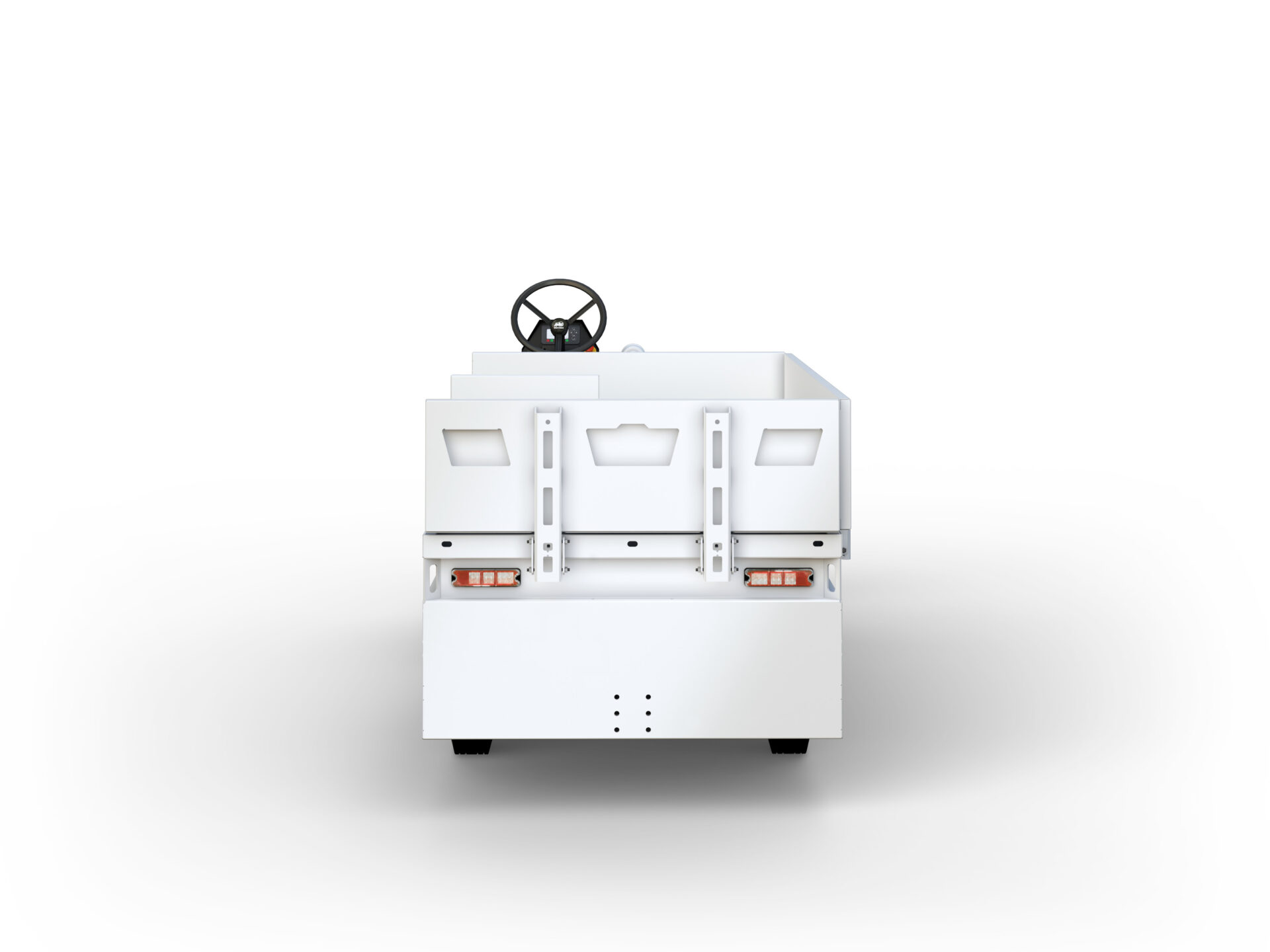

Rescue people anywhere, quickly and safely. With its integrated nurse seat, hinged sides and first aid compartment, the MX-480 Ambulance makes a great turnkey solution. Its short turning radius and impressive maneuverability are ideal for confined settings. The long list of options include electric siren, red strobe light, second storage compartment, multi-level cot and IV pole. This zero-emission vehicle can also be equipped with top, windshield and roll-up sides for all-weather protection. Fully customizable and brandable.
- Equipment Type
- Custom Vehicles / Industrial Vehicles
