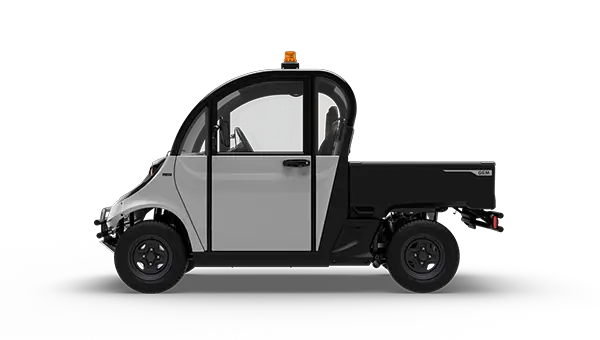

eX GEM
- 1-2 seating
- 1,450 lbs Payload capacity
- 1,250 lbs Towing Capacity
- 28 – 43 mi Range (8kWh)
- 76 – 85 mi Range (16kWh)
GEM eX Specs & Dimensions
Length 118 in (300 cm)
Width 55.5 in (141 cm)
Height 73 in (185 cm)
Bed 40 in (102 cm) long / 49 in (124 cm) wide / 12 in (30 cm) deep
Turning Radius 167 in (424 cm)
Wheelbase 86 in (218 cm)
Front Suspension MacPherson Strut / 5.6 in (14 cm) travel
Rear Suspension Independent Trailing Arm / 6.5 in (15 cm) travel
Wheels Standard 13 x 4.5 Steel
Ground Clearance 9.5 in (24 cm)
Dry Weight 1,550 lbs (703 kg)
GVW 3,000 lbs (1,361 kg)
Payload Capacity 1,450 lbs (658 kg)
Rear Bed Capacity 1,250 lbs (567 kg)
Motor Size 6.5 kW/ 8.7 HP
Motor Type AC Induction
Battery Maintenance-free Li-ion 120v / 240v
Top Speed 25 mph (40 kmh)
Brakes (Front/Rear) Four-wheel hydraulic disc with hand-actuated park brake
Charger Onboard 1.2 kW / 2.2 kW (8 kWh); 1.2 kW / 4.4 kW (16 kWh) charger standard included
Charger Compatibility 120V & 240V / J1772
Details
GEM eX street-legal electric UTV
The GEM eX is a category-creator of street-legal electric utility that doesn’t just meet the demands of the job, it exceeds them in every way.
On the job site, it packs plenty of grit – built to take on heavy work and tough terrain without compromise. On the street, it’s legal on local roads – delivering confident and compliant mobility between destinations.
Inside, the spacious and comfortable cab keeps you at your best in every season. And with no fuel and zero emissions, it works just as hard for your budget and the environment as it does for you. From rugged off-road tasks to nimble work in urban spaces, the GEM eX attacks any task in any terrain or in any season.
