Fusion Utility Short Bed Commercial Cart Fusion
Engine & Drivetrain
Motor 5kW
Controller 450 Amp Programmable
Drivetrain 16:1 High Speed Rear Axle
Speed 19 mph (30.4 km/h)
Battery 51.2V 105Ah Marxon® Lithium-Ion Pack with Heating Module
Charger Onboard – 20 Amp 120V
Range 31 mi (50km)
Battery Level Indicator Digital Touch Screen
Chassis E-Coat and Powder Coated Steel Frame
Suspension Heavy Duty Coil Over Shocks
Ground Clearance 6.5″ (16.5 cm) with Standard Wheels and Tires
Brakes 4 Wheel Premium Hydraulic Disc Brakes
Park Brake Electro Magnetic, Automatically Actuated Once Vehicle is
Stopped, Released when Accelerator Peddle is Engaged
Controller 450 Amp Programmable
Drivetrain 16:1 High Speed Rear Axle
Speed 19 mph (30.4 km/h)
Battery 51.2V 105Ah Marxon® Lithium-Ion Pack with Heating Module
Charger Onboard – 20 Amp 120V
Range 31 mi (50km)
Battery Level Indicator Digital Touch Screen
Chassis E-Coat and Powder Coated Steel Frame
Suspension Heavy Duty Coil Over Shocks
Ground Clearance 6.5″ (16.5 cm) with Standard Wheels and Tires
Brakes 4 Wheel Premium Hydraulic Disc Brakes
Park Brake Electro Magnetic, Automatically Actuated Once Vehicle is
Stopped, Released when Accelerator Peddle is Engaged
Dimensions
Wheels and Tires Black Aluminum, 225/55-12
Turning Radius 122″ (310 cm)
Vehicle Capacity 2 People
Overall Dimensions 121″ x 48″ x 78″ (306cm x 122cm x 200cm)
Utility Bed Dimensions 40″ x 45″ x 12″ (101.6cm x 114.3cm x 30.5cm)
Utility Bed Aluminum Dump Bed with Electric Hydraulic
Actuated Dump
Utility Bed Capacity 374 lbs (169.6 kg)
Curb Weight 1,212 lbs (549.6 kg)
Payload 793 lbs (359.6 kg)
Tow Capacity 2,000 Lbs (907.2 kg)
Electronics Digital Touch Screen Speedometer, Hazard Switch,
USB Power Switch
Body Color Matte Black
Seats Black Bolstered Seats
Warranty 2-Year Full Car / 5-Year Full Battery
Turning Radius 122″ (310 cm)
Vehicle Capacity 2 People
Overall Dimensions 121″ x 48″ x 78″ (306cm x 122cm x 200cm)
Utility Bed Dimensions 40″ x 45″ x 12″ (101.6cm x 114.3cm x 30.5cm)
Utility Bed Aluminum Dump Bed with Electric Hydraulic
Actuated Dump
Utility Bed Capacity 374 lbs (169.6 kg)
Curb Weight 1,212 lbs (549.6 kg)
Payload 793 lbs (359.6 kg)
Tow Capacity 2,000 Lbs (907.2 kg)
Electronics Digital Touch Screen Speedometer, Hazard Switch,
USB Power Switch
Body Color Matte Black
Seats Black Bolstered Seats
Warranty 2-Year Full Car / 5-Year Full Battery
Details

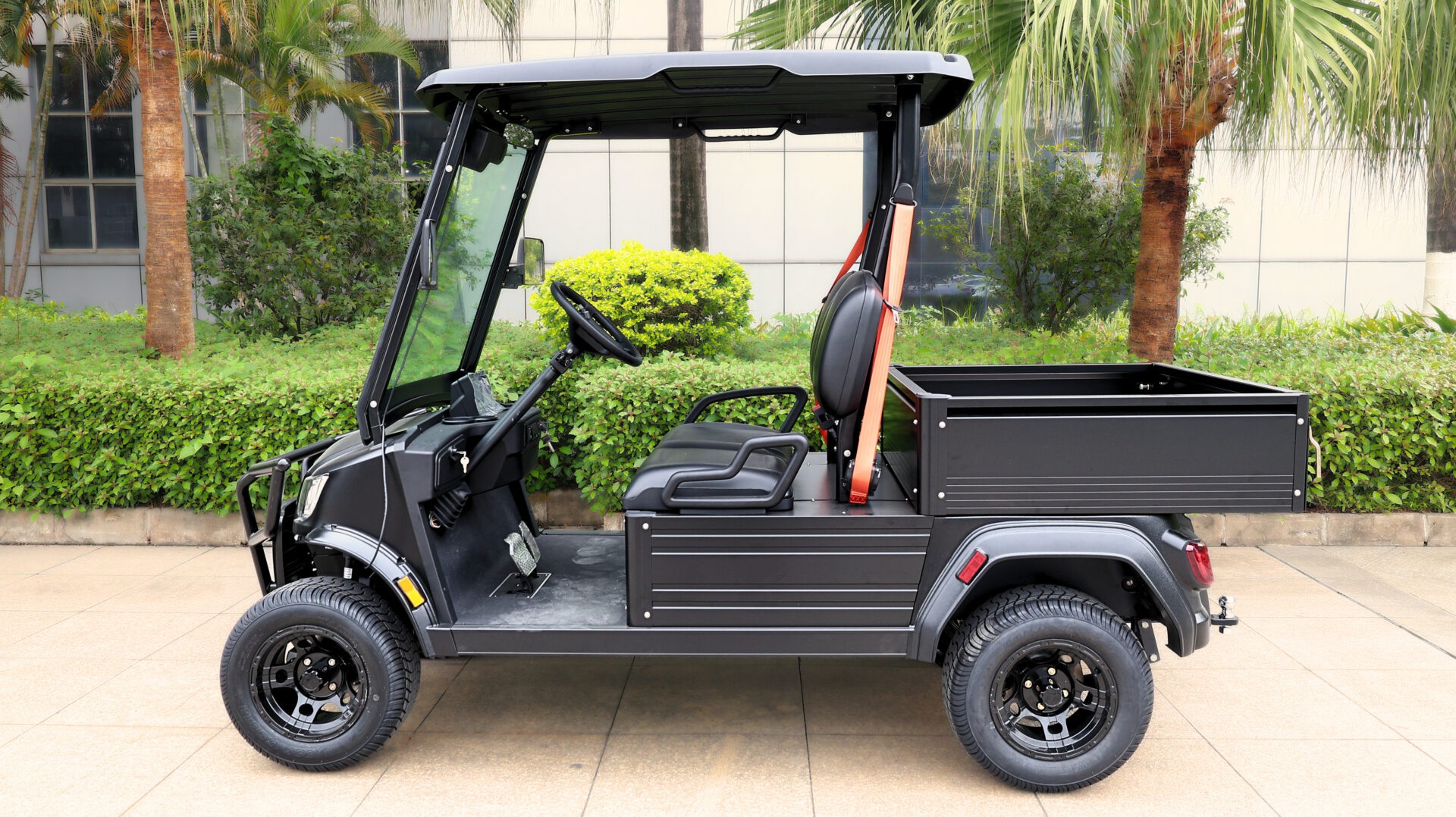

Fusion Utility Short Bed Commercial Cart
Utility Short Bed is an extremely versatile and nimble work vehicle designed to move people, tools and equipment around job sites, campuses, airports, industrial plants, resorts, zoos and more. Engineered for work, the aluminum bed lifts with the press of a button thanks to its electric hydraulic dump system, and the vehicle comes standard with a two-inch receiver for towing. It is also well-equipped with safety and reliability features like three-point seat belts, backup cameras, front brush guards, and a full five-year warranty on our maintenance-free lithium-ion battery. The highly efficient and reliable Fusion Utility Short Bed stands ready day in and day out. Learn More
- Equipment Type
- Industrial Commercial Vehicles / Utility Vehicles
