R-380 Taylor-Dunn
Engine & Drivetrain
Battery Range26-35 mile (42 km)
Drive System Type: Dana Direct Drive
Engine Type: 36V or 48V DC Electric
Fuel System/Battery: 6V Lead Acid
Horsepower: 6.6/8.8 HP
Top Speed: 11-15 mph (21 km/h)
Dimensions
Deck Size: 42 x 32 in (108 x 81 cm)
Estimated Dry Weight: 1160 lb (526 kg)
Hitch Towing Rating: 5,000 lb (2268 kg)
Overall Vehicle Size (L x W x H): 99.5 x 44 x 45.5 in (253 x 112 x 115 cm)
Payload Capacity: 1,150 lb (522 kg)
Person Capacity: 2
Turning Radius: 112 in (284 cm)
Wheelbase: 63.5 in (161 cm)
Brakes: Front/Rear BrakesRear Mechanical Brake Drum
Parking BrakeHand Operated Parking Brake
Specifications
Adjustable Driver Seat: Not Equipped
Instrumentation: Battery Status Indicator, Forward/Reverse Selector, Key Switch, Electric Horn
Lighting: Dual Brake Lights
Other Standard Features: Split Seat with Full Back Cushions, Driver’s Seat Electric Interlock Switch
Seat Covering: Black Vinyl
Tilt Steering: Not Equipped
Tires / Wheels
Electronic Power Steering: Not Equipped
Front Tires: 5.70×8 Load Range C Pneumatic
Rear Tires: 5.70×8 Load Range C Pneumatic
Suspension
Front Suspension: Front Leaf Springs with Dual Front Shock Absorbers
Rear Suspension: Rear Leaf Springs
Details

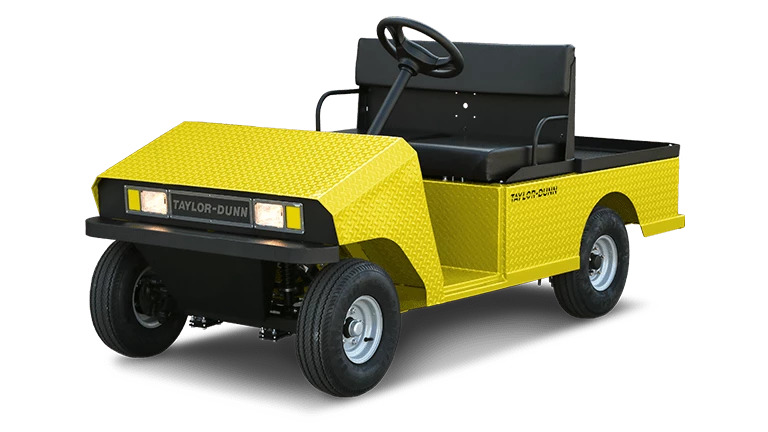

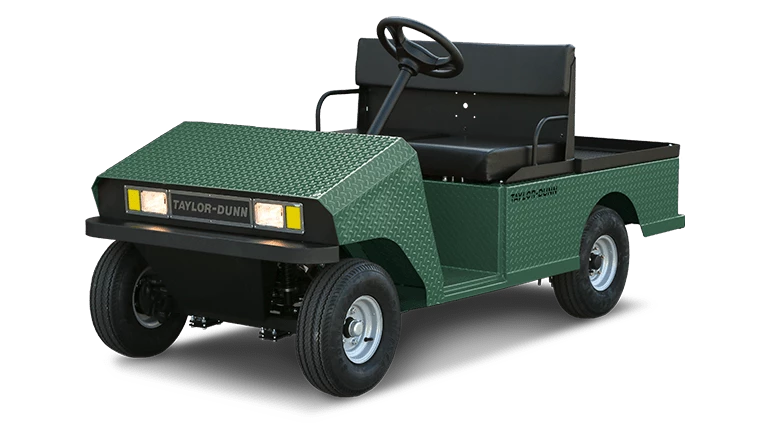

The Taylor-Dunn R-380 36V is a compact electric industrial utility vehicle engineered for demanding work environments. With a rugged all-steel body, tight 112-inch turning radius and proven 36-volt powertrain, the R-380 delivers reliable personnel transport, cargo hauling and towing in a highly maneuverable footprint. Carry up to 1,150 lbs., transport up to four people, or tow up to 5,000 lbs. — all while navigating the warehouses, manufacturing plants, campuses and industrial facilities where larger vehicles simply can’t go.
Optional popular accessories: strobe light, directional signals, front bumper, rear flip-up seat, and steel cab with doors
- Equipment Type
- Industrial Commercial Vehicles / Personnel Carriers
