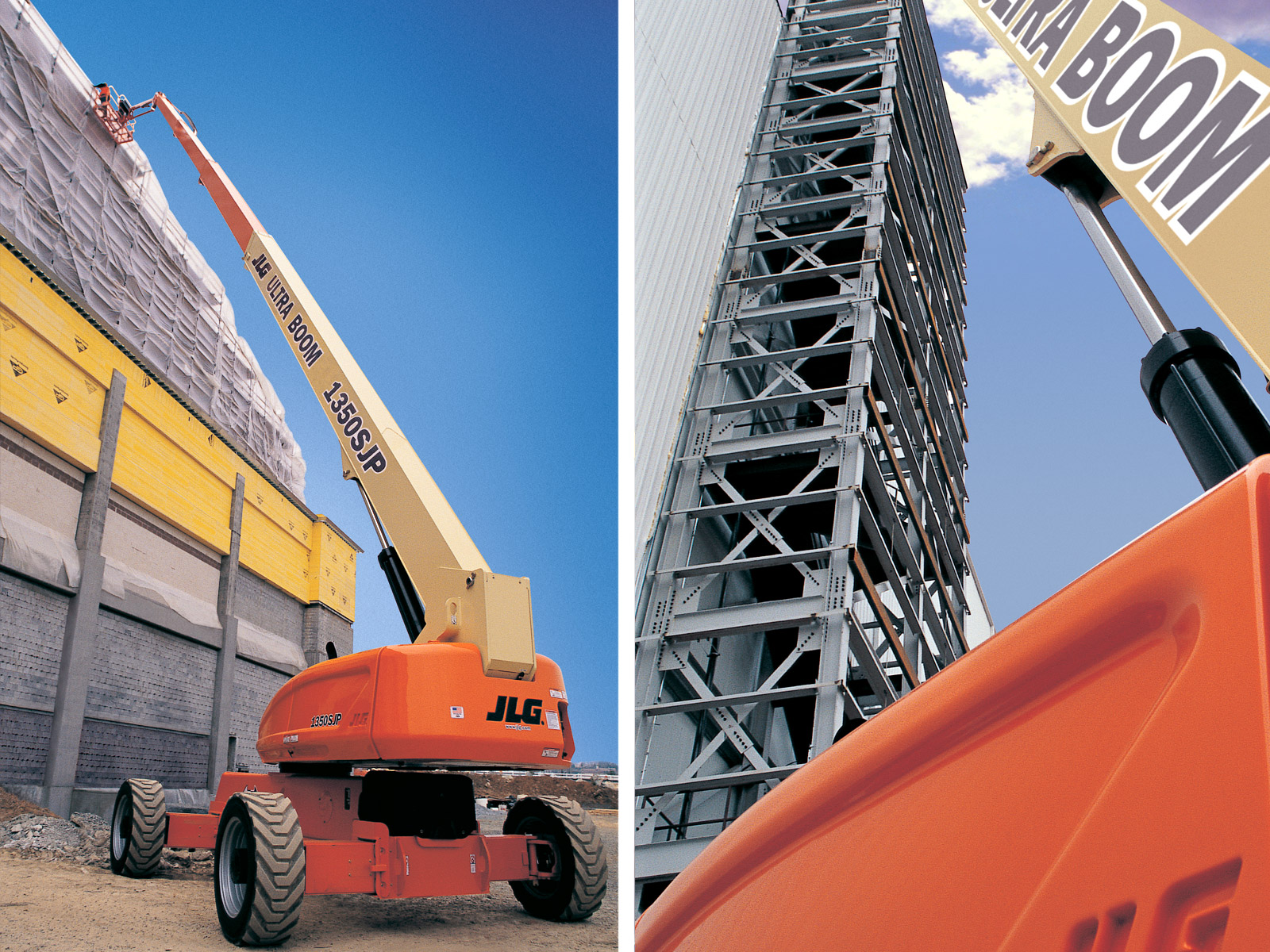

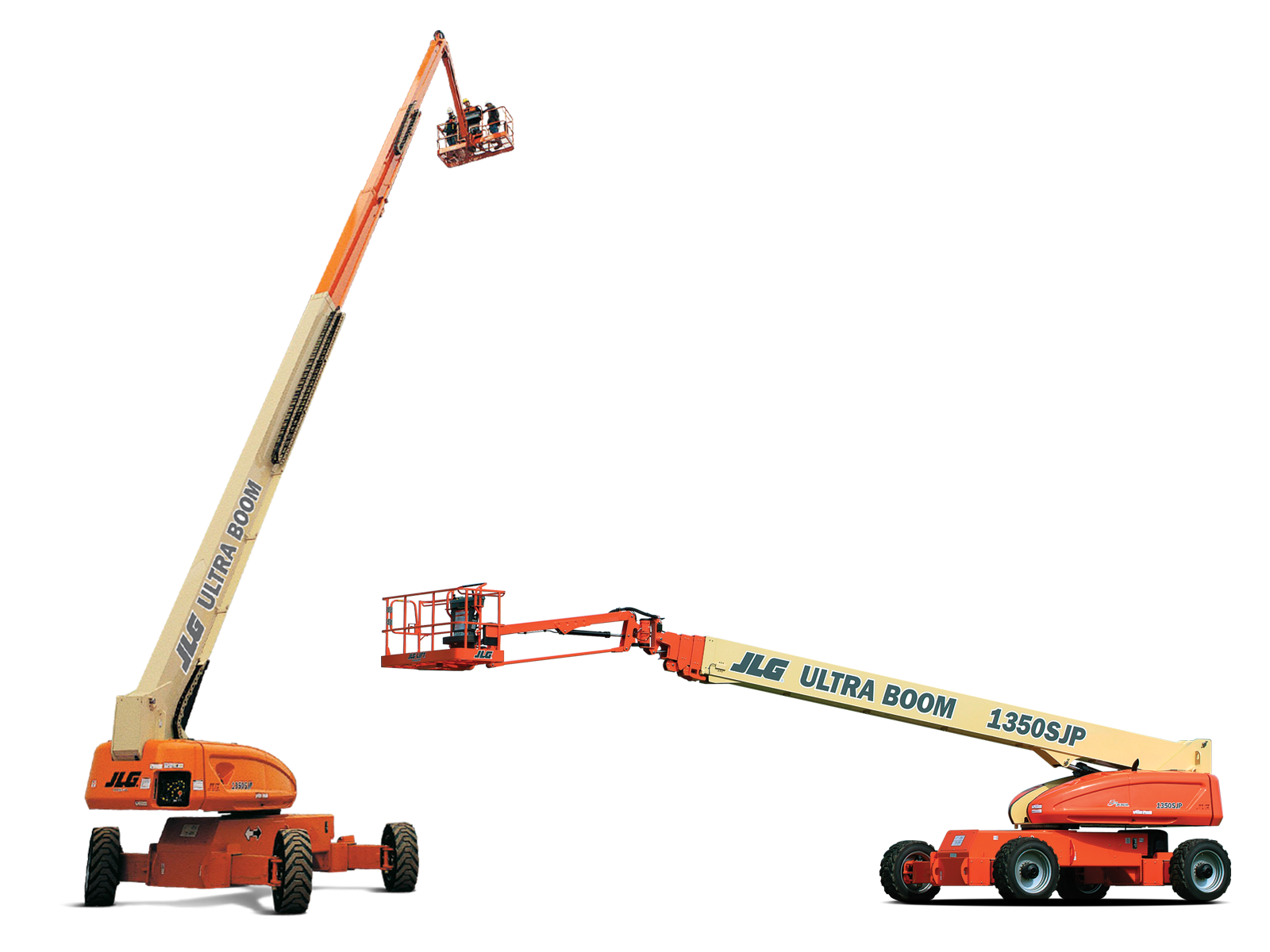

1350SJP JLG
- Ground to 135 ft up in 95 seconds
- Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity give you stability and capacity
- Equipped with a fuel-efficient Tier 4 engine
- Auxiliary Power: 12 Volts DC
- Axle Oscillation: 1 ft / 0.3 m
- Capacity – Fuel Tank: 31 gal. / 117.35 L
- Capacity – Hydraulic Reservoir: 55 gal. / 208.20 L
- Drive Speed – 4WD: 3.25 mph / 5.23 km/h
- Engine Type – Diesel: DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
- Gradeability – 4WD: 45 %
- Ground Bearing Pressure: 107 psi / 7.49 Kg/cm2
- Ground Clearance: 1 ft / 0.3 m
- Horizontal Jib Rotation: 180 Degrees
- Horizontal Outreach: 80 ft / 24.38 m
- Machine Height: 10 ft / 3.05 m
- Machine Length: 48 ft 10 in. / 14.88 m
- Machine Length – Transport: 38 ft 11 in. / 11.86 m
- Machine Weight: 45000 lb / 20411.66 kg
- Machine Width: 8 ft 2 in. / 2.49 m
- Machine Width – Axles Extended: 12 ft 6 in. / 3.81 m
- Platform Capacity – Restricted: 1000 lb / 453.59 kg
- Platform Capacity – Unrestricted: 500 lb / 226.80 kg
- Platform Dimension A: 3 ft / 0.91 m
- Platform Dimension B: 8 ft / 2.44 m
- Platform Height: 135 ft / 41.15 m
- Platform Height: 135 ft / 41.15 m
- Swing: 360 Degrees
- Swing Type: Continuous
- Tailswing: 5 ft 6 in. / 1.68 m
- Tire Size: 445/500710 Foam-Filled
- Turning Radius – Outside (axles extended): 19 ft 4 in. / 5.89 m
- Turning Radius – Outside (axles retracted): 22 ft 6 in. / 6.86 m
- Vertical Jib Rotation: 130 Degrees
Details
When you’ve got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.
- Equipment Type
- Aerial Lifts / Articulating Booms
