400S JLG

  • Improved multifunction capability increases productivity
  • More durability and serviceability thanks to the new DuraTough hood design
  • Larger capacity of 600 lb
  • Auxiliary Power: 12 Volts DC
  • Capacity – Fuel Tank: 22 gal. / 83.28 L
  • Capacity – Hydraulic Reservoir: 36 gal. / 136.27 L
  • Drive Speed – 4WD: 4.50 mph / 7.24 km/h
  • Engine Type – Diesel: Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW
  • Engine Type – Dual Fuel: GM Vortec 3000 MPFI 82 hp 61 kW
  • Gradeability – 4WD: 45 %
  • Ground Bearing Pressure: 60 psi / 4.20 Kg/cm2
  • Ground Clearance: 1 ft / 0.31 m
  • Horizontal Jib Rotation: 0 Degrees

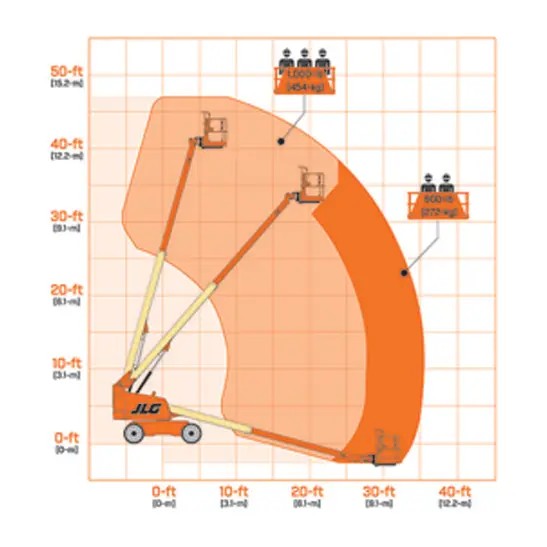

  • Horizontal Outreach: 33 ft 3 in. / 10.13 m
  • Machine Height: 8 ft 1 in. / 2.47 m
  • Machine Length: 24 ft 10 in. / 7.57 m
  • Machine Length – Transport: 24 ft 10 in. / 7.57 m
  • Machine Weight: 13425 lb / 6089.48 kg
  • Machine Width: 7 ft 7 in. / 2.31 m
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 600 lb / 272.16 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 40 ft / 12.19 m
  • Platform Height: 40 ft / 12.19 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tire Size: 12 x 16.5 Pneumatic Lug Tread Tires
  • Turning Radius – Outside: 15 ft 11 in. / 4.84 m
Details

When you’ve got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.

Equipment Type
Aerial Lifts / Articulating Booms
