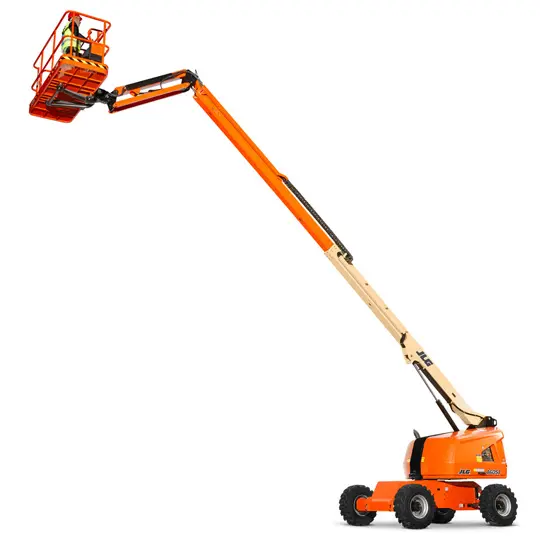

460SJ HC3 JLG

Back to Inventory
  • Utilizes three working zones for
    enhanced capacity; up to three
    workers and tools can fit onto the
    platform.
  • Delivers a zero-calibration automatic
    load sensing system that eliminates
    the need to use external weights to
    calibrate the machine.
  • Utilizes an upgraded light panel that
    is more visible in the sun, and a chassis
    tilt alarm that alerts the operator
    when the machine is on a slope that
    exceeds 5 Degrees.
  • Platform Height 46-ft / 14.05-m

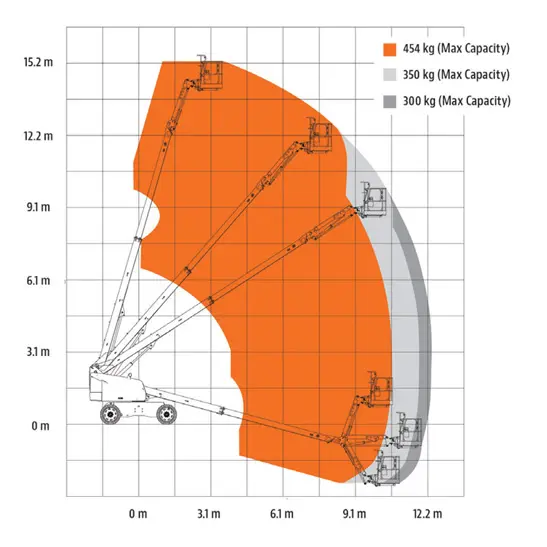

  • Horizontal Outreach 39-ft / 12-m
  • Swing 360 Degrees Continuous
  • Platform Capacity (Restricted) 750/1,000-lb / 340/454-kg
  • Platform Capacity (Unrestricted) 660-lb / 300-kg
  • Platform Rotator 180 Degrees Hydraulic
  • Jib Length 6-ft / 1.83-m
  • Jib Range of Articulation 130 Degrees (+71, -61)
  • Weight* 20,516-lb / 9,306-kg
  • Max. Ground Bearing Pressure 97.1 psi / 6.8 kg/cm²
  • Drive Speed 4.25 mph / 6.8 km/h
  • Gradeability 45%
  • Tilt Cut Out 5 Degrees
  • Turning Radius (Inside/Outside) 6-ft 6.9-in (2.0-m) / 15-ft 10.5-in (4.8-m)
Details

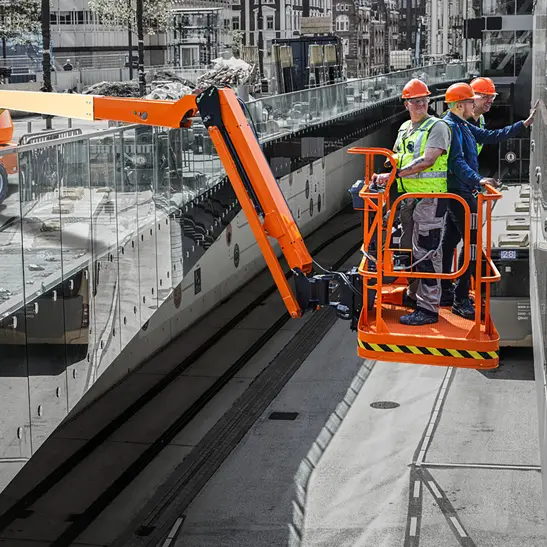

The JLG 460SJ HC3 offers more flexibility at height, with three working zones and enhanced capacity, up to three workers and tools can fit into the platform.

An efficient zero calibration automatic load sensing system eliminates the need for external weights to calibrate the machine. Operators benefit from enhanced features like an upgraded light panel that’s more visible in the sun and a chassis tilt alarm that alerts when the machine is on a slope exceeding 5 degrees.

The JLG 460SJ HC3 also includes a standard LED Motion/Amber Beacon with ClearSky Smart Fleet Connectivity Hardware.

Equipment Type
Aerial Lifts / Telescopic Boom Lift
