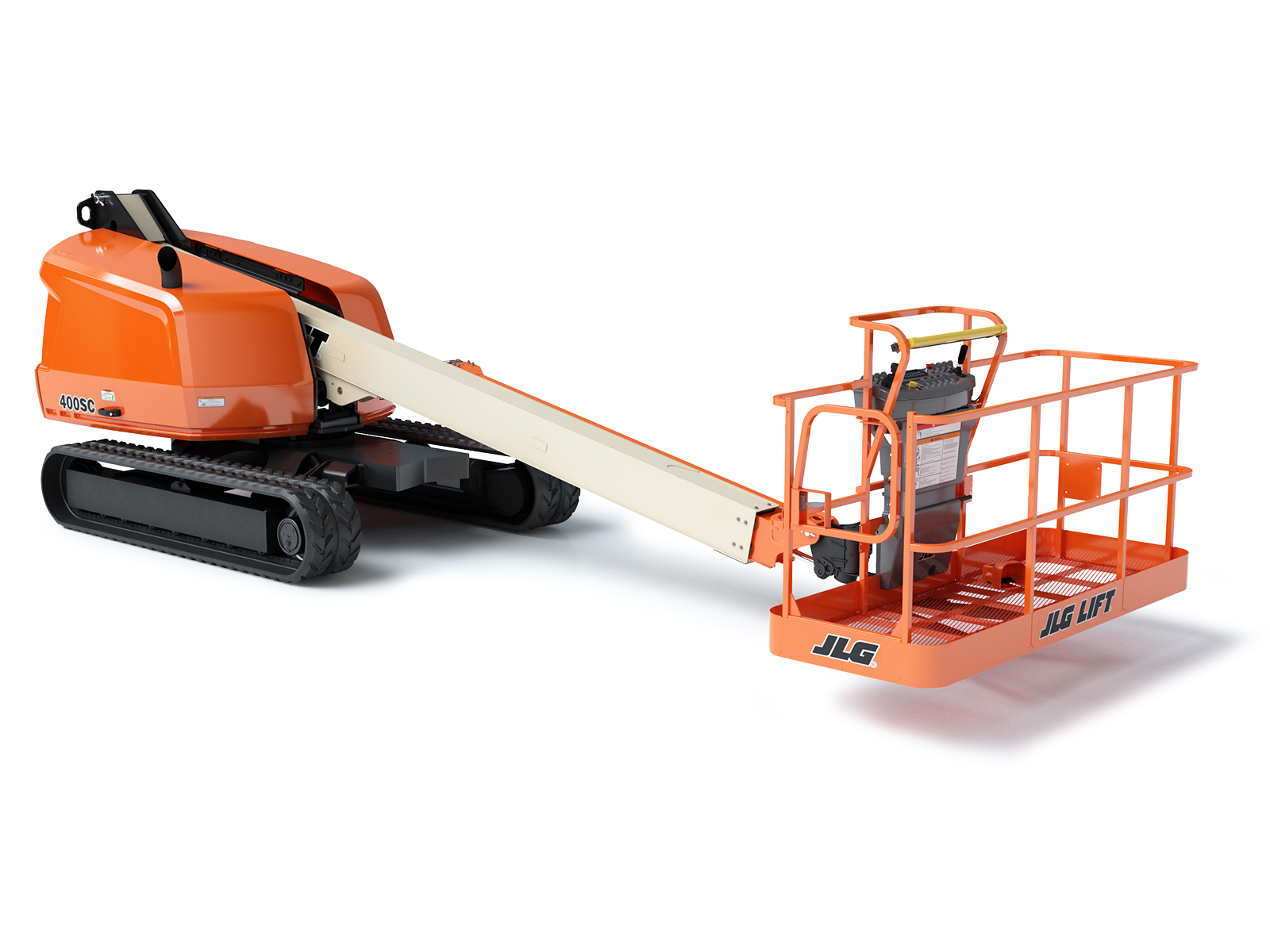

400SC JLG

Back to Inventory
  • SkyGuard® Enhanced Control Panel Protection – Standard feature that helps decrease the likelihood of operator caught-between injuries while working at height
  • Industry-leading Capacity – Dual capacity and 600-lb unrestricted/1,000-lb restricted capacity allow operators to carry more tools
  • Improved Fuel Efficiency – Variable-speed engine control reduces operating costs and engine wear and tear
  • More Durability – DuraTough hood is highly impact resistant for less maintenance and greater protection of interior components
  • Superior Terrainability – Full-size tracks make areas with soft ground, mud, sand and snow accessible
  • Increased Work Envelope – 360 degrees of continuous rotation lets operators reach more and reposition less
  • Enhanced Productivity – Faster function speeds and multifunction capability allow operators to perform more functions at once
  • Auxiliary Power: 12 Volts DC
  • Capacity – Fuel Tank: 22 gal. / 83.28 L
  • Capacity – Hydraulic Reservoir: 36 gal. / 136.27 L
  • Drive Speed – 4WD: 1.6 mph / 2.57 km/h
  • Engine Type – Diesel: Deutz D2.9L4 Tier 4 Final 49 hp (36.4 kW)
  • Gradeability – 4WD: 51 %
  • Ground Clearance: 1 ft 1 in. / 0.32 m
  • Horizontal Outreach: 33 ft / 10.06 m
  • Machine Height: 7 ft 8 in. / 2.32 m
  • Machine Length: 24 ft 10 in. / 7.57 m
  • Machine Weight: 14559 lb / 6603.85 kg
  • Machine Width: 7 ft 4 in. / 2.24 m
  • Maximum Ground Bearing Pressure: 5.2 psi / 0.36 Kg/cm2
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 600 lb / 272.16 kg
  • Platform Height: 39 ft 7 in. / 12.05 m
  • Swing: 360 Degrees
  • Tailswing: 3 ft 2 in. / 0.97 m
  • Track Width: 1 ft 4 in. / 0.4 m
Details
Equipment Type
Aerial Lifts / Articulating Booms
