X500AJ JLG

  • Auto levels on uneven surfaces
  • Regenerative valve on telescopic cylinder resulting 50% increase in speed
  • Drive speed control for smooth operation on a variety of terrains
  • Fits through a standard doorway
  • 500 lb unrestricted platform capacity
  • Engine Type – Electric: 100Ah 48V Lithium-Ion
  • Engine Type – Gasoline: Honda GX440 15 hp
  • Fuel Tank Capacity – Gasoline: 2 gal. / 5.68 L
  • Gradeability: 36 %
  • Ground Bearing Pressure: 10 psi / 0.68 Kg/cm2
  • Ground Bearing Pressure – Outriggers: 36 psi / 2.49 Kg/cm2
  • Horizontal Outreach: 23 ft / 7.01 m
  • Machine Height: 6 ft 7 in. / 1.99 m
  • Machine Length: 14 ft 10 in. / 4.52 m
  • Machine Weight: 5071 lb / 2300.17 kg
  • Machine Width: 2 ft 7 in. / 0.79 m
  • Outrigger Footprint Length: 10 ft 5 in. / 3.18 m
  • Outrigger Footprint Width: 10 ft 5 in. / 3.18 m
  • Outriggers or Stabilizers: Yes
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 4 ft 10 in. / 1.47 m
  • Platform Dimension B: 2 ft 6 in. / 0.76 m
  • Platform Height: 49 ft / 14.94 m
  • Platform Height: 49 ft / 14.94 m
  • Swing: 360 Degrees
  • Swing Type: Non-Continuous
  • Track Length: 4 ft 1 in. / 1.24 m
  • Vertical Jib Rotation: 89 Degrees
Details

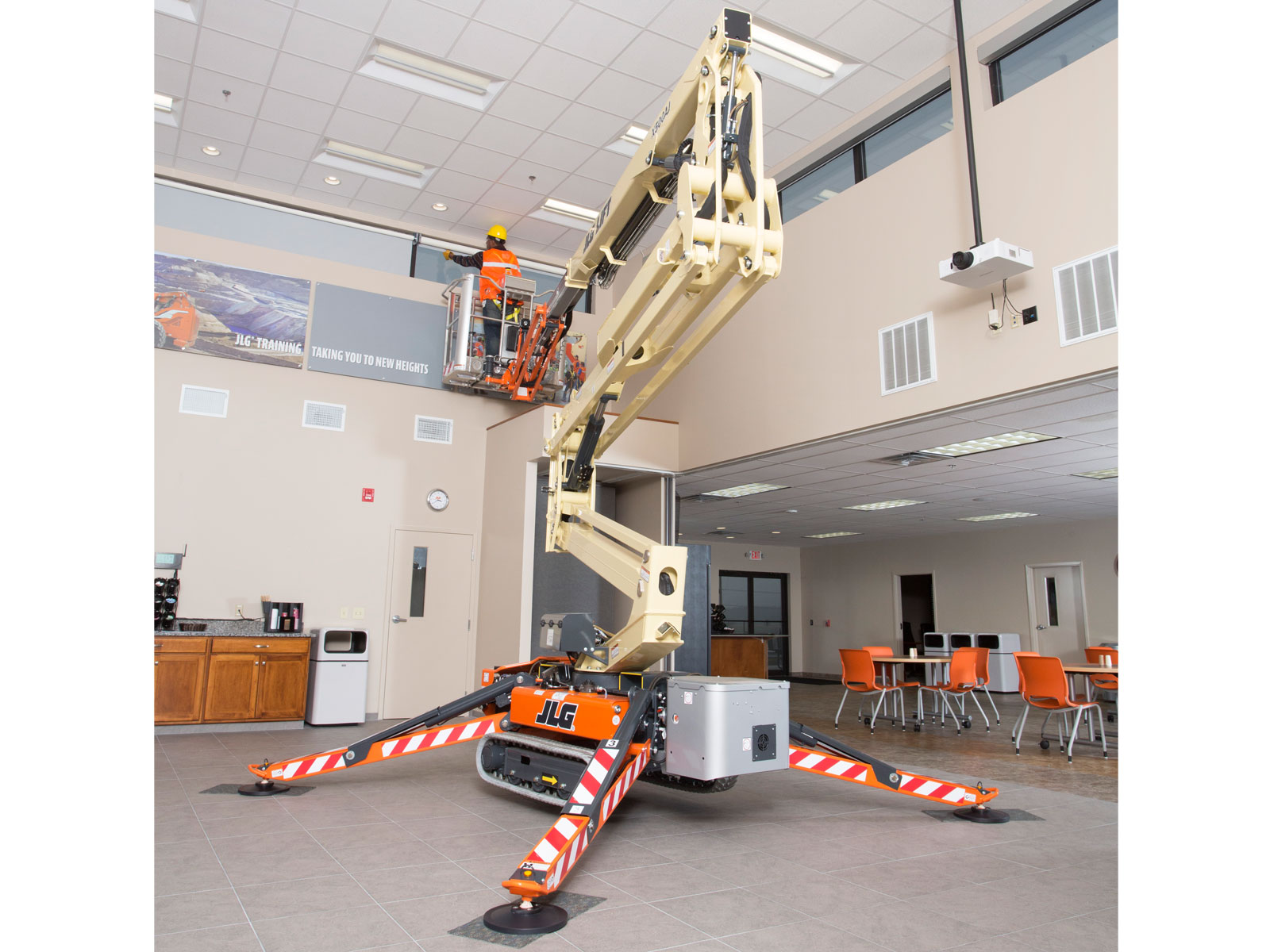

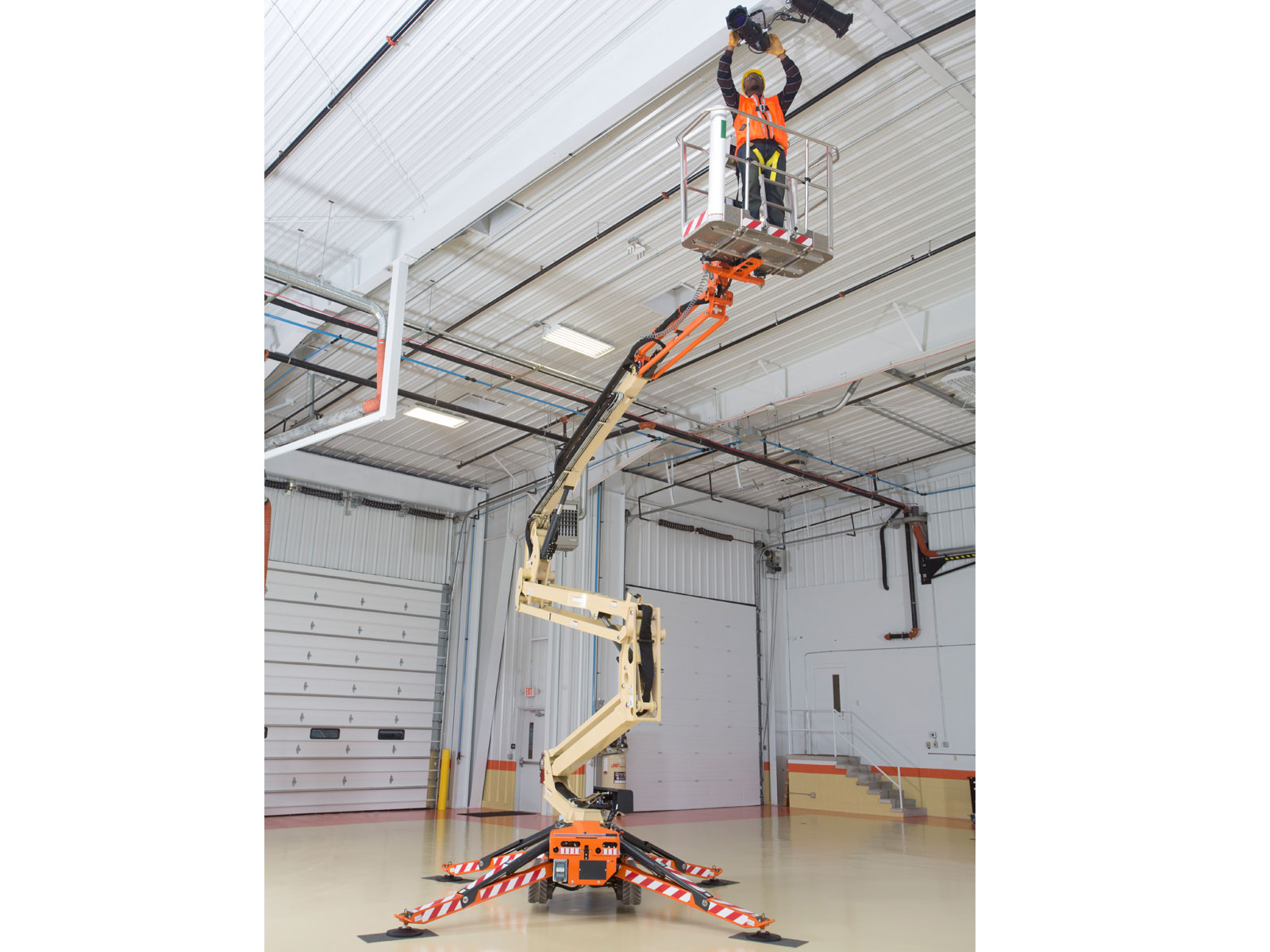

Now you can go more places around the job site thanks to the low weight and rubber tracks on the new Compact Crawler Boom. These machines are environmentally friendly with standard AC power, gas or an optional Lithium-ion electrical system that doesn’t produce emissions. A tracked wheel carriage climbs slopes, and a narrow chassis allows for access through gates, yards, standard doorways and public buildings.

Equipment Type
Aerial Lifts / Articulating Booms
