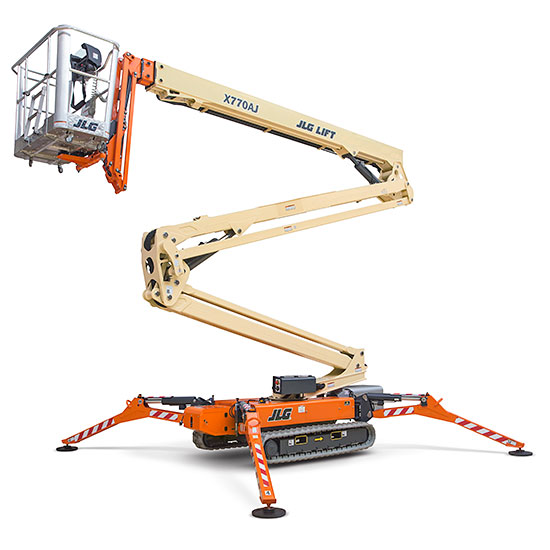

X770AJ JLG

Key Specs

  • Machine Width: 3 ft 3 in. / 0.99 m
  • Platform Capacity: 500 lb / 226.80 kg

Key Features

  • Drive speed control for smooth operation on a variety of terrains
  • 500 lb unrestricted platform capacity
  • Regenerative valve on telescopic cylinder resulting 50% increase in speed
  • Fits through a standard doorway
  • Auto levels on uneven surfaces
  • Drive speed control for smooth operation on a variety of terrains
  • Regenerative valve on telescopic cylinder resulting 50% increase in speed
  • Fits through a standard doorway
  • 500 lb unrestricted platform capacity
  • Auto levels on uneven surfaces
  • Engine Type – Diesel: Diesel Kubota D902 21.6 hp
  • Engine Type – Electric: 100Ah 83V Lithium-Ion
  • Fuel Tank Capacity – Diesel: 6.6 gal. / 24.98 L
  • Gradeability: 28 %
  • Ground Bearing Pressure – Outriggers: 65.3 psi / 4.57 Kg/cm2
  • Horizontal Outreach: 43 ft / 13.11 m
  • Jib – Range of articulation: 89 Degrees
  • Machine Height: 6 ft 7 in. / 1.99 m
  • Machine Length: 20 ft 9 in. / 6.32 m
  • Machine Weight: 9665 lb / 4383.97 kg
  • Machine Width: 3 ft 3 in. / 0.99 m
  • Maximum Ground Bearing Pressure: 7.8 psi / 0.55 Kg/cm2
  • Outrigger Footprint Length: 14 ft / 4.27 m
  • Outrigger Footprint Width: 13 ft 6 in. / 4.11 m
  • Outriggers or Stabilizers: Yes
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 4 ft 10 in. / 1.47 m
  • Platform Dimension B: 2 ft 6 in. / 0.76 m
  • Platform Height: 77 ft 5 in. / 23.6 m
  • Slope Tolerance: 16 °
  • Swing: 360 Degrees
  • Swing Type: Non-Continuous
  • Track Length: 6 ft 10 in. / 2.08 m
  • Working Height: 84 ft / 25.6 m
Details
Equipment Type
Aerial Lifts / Articulating Booms
