X700AJ JLG

  • Enhanced maneuverability and accessibility
  • Outriggers required for operation and for leveling capability on uneven surfaces
  • Compact design increases ease of transport
  • Lightweight for low floor loading and ease of transport
  • Environmentally friendly – electric and combustion combination power for efficient energy usage
  • Engine Type – Electric: 100Ah 72V Lithium-Ion
  • Engine Type – Gasoline: Honda GX440 15 hp
  • Fuel Tank Capacity – Gasoline: 2 gal. / 5.68 L
  • Gradeability: 40 %
  • Ground Bearing Pressure: 7 psi / 0.50 Kg/cm2
  • Ground Bearing Pressure – Outriggers: 43 psi / 3.02 Kg/cm2
  • Horizontal Outreach: 37 ft / 11.28 m
  • Machine Height: 6 ft 7 in. / 1.99 m
  • Machine Length: 19 ft 8 in. / 5.99 m
  • Machine Weight: 7050 lb / 3197.83 kg
  • Machine Width: 3 ft 3 in. / 0.99 m
  • Outrigger Footprint Length: 13 ft 1 in. / 3.99 m
  • Outrigger Footprint Width: 13 ft 1 in. / 3.99 m
  • Outriggers or Stabilizers: Yes
  • Platform Capacity: 440 lb / 199.58 kg
  • Platform Dimension A: 4 ft 10 in. / 1.47 m
  • Platform Dimension B: 2 ft 7 in. / 0.79 m
  • Platform Height: 69 ft 7 in. / 21.21 m
  • Platform Height: 69 ft 7 in. / 21.21 m
  • Swing: 360 Degrees
  • Swing Type: Non-Continuous
  • Track Length: 5 ft 9 in. / 1.75 m
  • Vertical Jib Rotation: 85 Degrees
Details

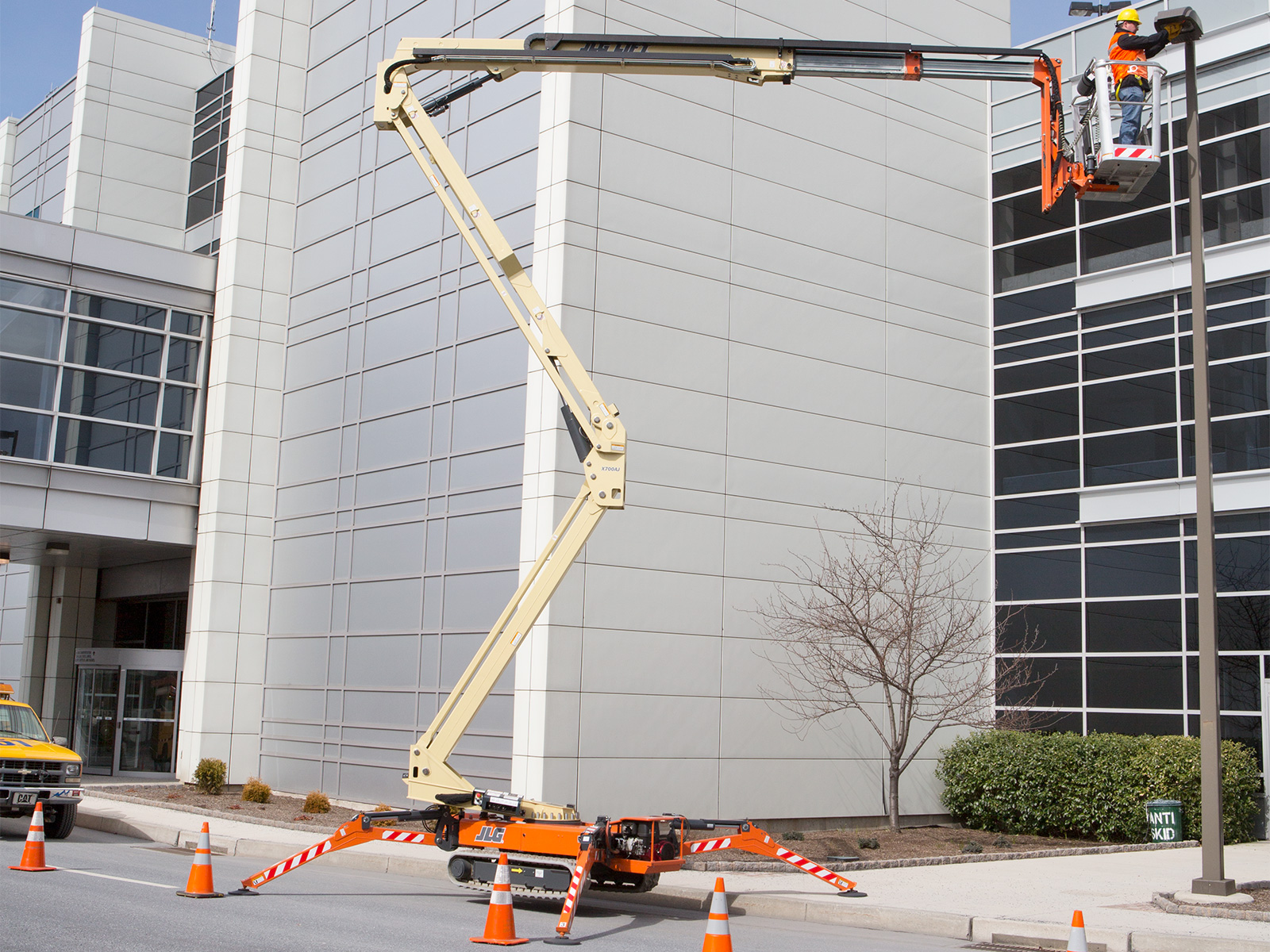

Now you can go more places around the job site thanks to the low weight and rubber tracks on the new Compact Crawler Boom. These machines are environmentally friendly with standard AC power, gas or an optional Lithium-ion electrical system that doesn’t produce emissions. A tracked wheel carriage climbs slopes, and a narrow chassis allows for access through gates, yards, standard doorways and public buildings.

Equipment Type
Aerial Lifts / Articulating Booms
