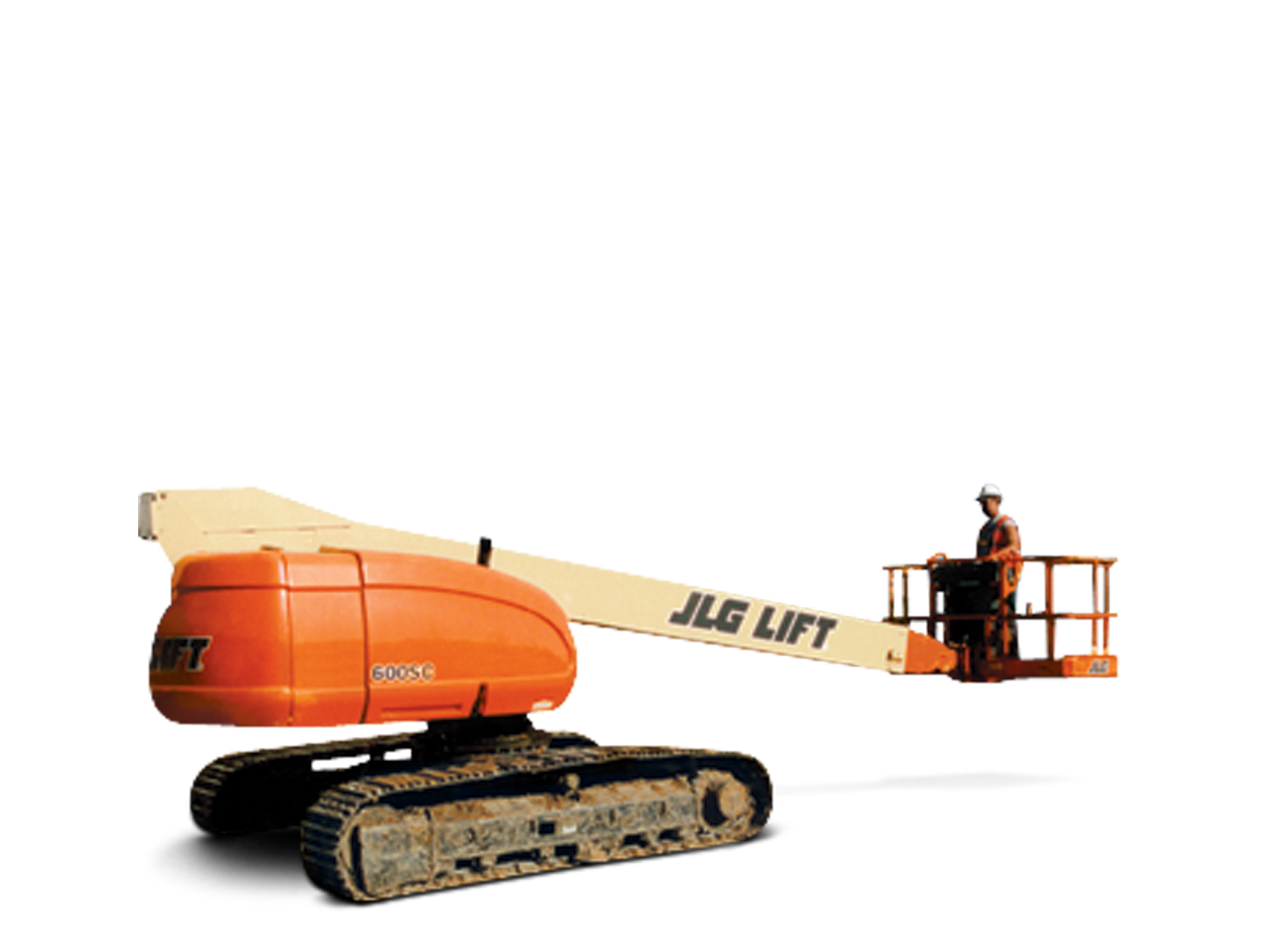

600SC JLG

  • Zero turning radius to get around the jobsite easier
  • For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
  • Single drive / steer joystick for one-handed operation
  • Auxiliary Power: 12 Volts DC
  • Capacity – Fuel Tank: 31 gal. / 117.35 L
  • Capacity – Hydraulic Reservoir: 34 gal. / 128.70 L
  • Drive Speed – 4WD: 1.6 mph / 2.57 km/h
  • Engine Type – Diesel: Deutz TD2.9L4 Tier 4 Final
  • Gradeability – 4WD: 55 %
  • Ground Clearance: 1 ft 3 in. / 0.38 m
  • Horizontal Outreach: 50 ft 3 in. / 15.32 m
  • Machine Height: 8 ft 2 in. / 2.5 m
  • Machine Length: 28 ft 7 in. / 8.71 m
  • Machine Weight: 25942 lb / 11767.09 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Maximum Ground Bearing Pressure: 5.5 psi / 0.38 Kg/cm2
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 600 lb / 272.16 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 59 ft 5 in. / 18.11 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 4 ft / 1.22 m
  • Track Width: 20in.
Details
Equipment Type
Aerial Lifts / Articulating Booms
