660SJ JLG

  • Easy-to-use platform controls reduce operator training time
  • Select from 2 models
  • Best selling 60 ft boom lifts
  • Equipped with a fuel-efficient Tier 4 engine
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 8 in. / 0.2 m
  • Capacity – Fuel Tank: 31 gal. / 117.35 L
  • Capacity – Hydraulic Reservoir: 34 gal. / 128.70 L
  • Drive Speed – 4WD: 3.8 mph / 6.12 km/h
  • Engine Type – Diesel: Deutz TD2.9L4 Tier 4 Final 67hp (50kw)
  • Engine Type – Dual Fuel: Ford MSG425-DF 84hp (62kw)
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 11 in. / 0.29 m

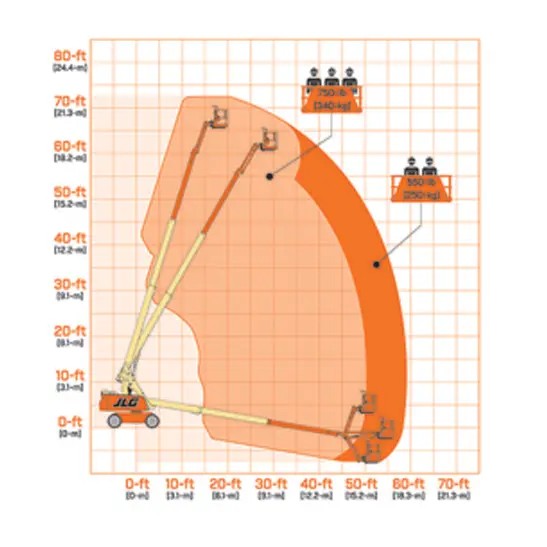

  • Horizontal Outreach: 57 ft 1 in. / 17.4 m
  • Machine Height: 8 ft 2 in. / 2.5 m
  • Machine Length: 35 ft 5 in. / 10.79 m
  • Machine Weight: 25341 lb / 11494.48 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Maximum Ground Bearing Pressure: 85 psi / 5.95 Kg/cm2
  • Platform Capacity – Restricted: 750 lb / 340.19 kg
  • Platform Capacity – Unrestricted: 550 lb / 249.48 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 65 ft 8 in. / 20.02 m
  • Swing: 360 Degrees
  • Tailswing: 4 ft / 1.22 m
  • Tire Size: 41/181.11 X 22.5
  • Turning Radius – Outside (2WS): 17 ft 7 in. / 5.36 m
  • Turning Radius – Outside (4WS): 9 ft 6 in. / 2.9 m
Details
Equipment Type
Aerial Lifts / Articulating Booms
