660SJC JLG
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Auxiliary Power: 12 Volts DC
- Capacity – Fuel Tank: 31 gal. / 117.35 L
- Capacity – Hydraulic Reservoir: 34 gal. / 128.70 L
- Drive Speed – 4WD: 1.6 mph / 2.57 km/h
- Engine Type – Diesel: Deutz TD2.9L4 Tier4 Final
- Gradeability – 4WD: 55 %
- Ground Clearance: 1 ft 3 in. / 0.38 m

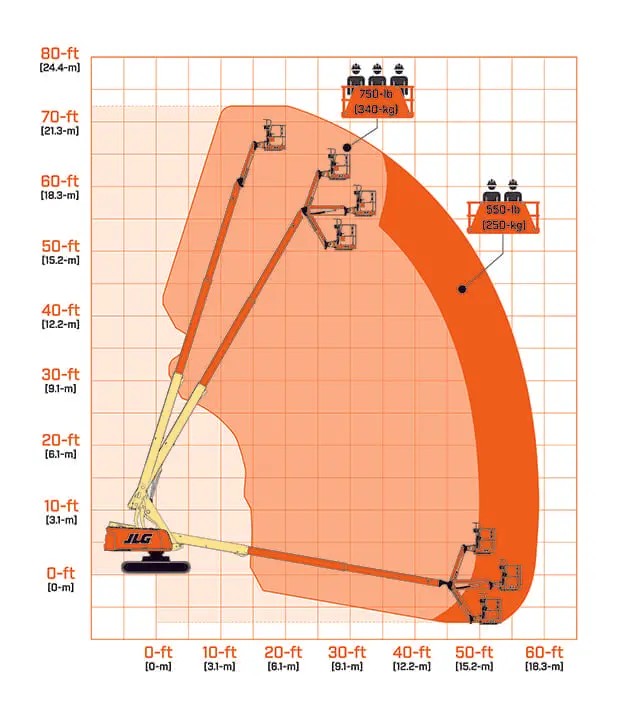

- Horizontal Outreach: 57 ft 1 in. / 17.39 m
- Jib – Range of articulation: 132 Degrees
- Machine Height: 8 ft 2 in. / 2.5 m
- Machine Length: 35 ft 5 in. / 10.79 m
- Machine Weight: 29339 lb / 13307.95 kg
- Machine Width: 8 ft 2 in. / 2.49 m
- Maximum Ground Bearing Pressure: 6.5 psi / 0.46 Kg/cm2
- Platform Capacity – Restricted: 750 lb / 340.19 kg
- Platform Capacity – Unrestricted: 550 lb / 249.48 kg
- Platform Dimension A: 3 ft / 0.91 m
- Platform Dimension B: 8 ft / 2.44 m
- Platform Height: 65 ft 7 in. / 19.99 m
- Swing: 360 Degrees
- Swing Type: Continuous
- Tailswing: 4 ft / 1.22 m
- Track Width: 20in.
Details
- Equipment Type
- Aerial Lifts / Articulating Booms
