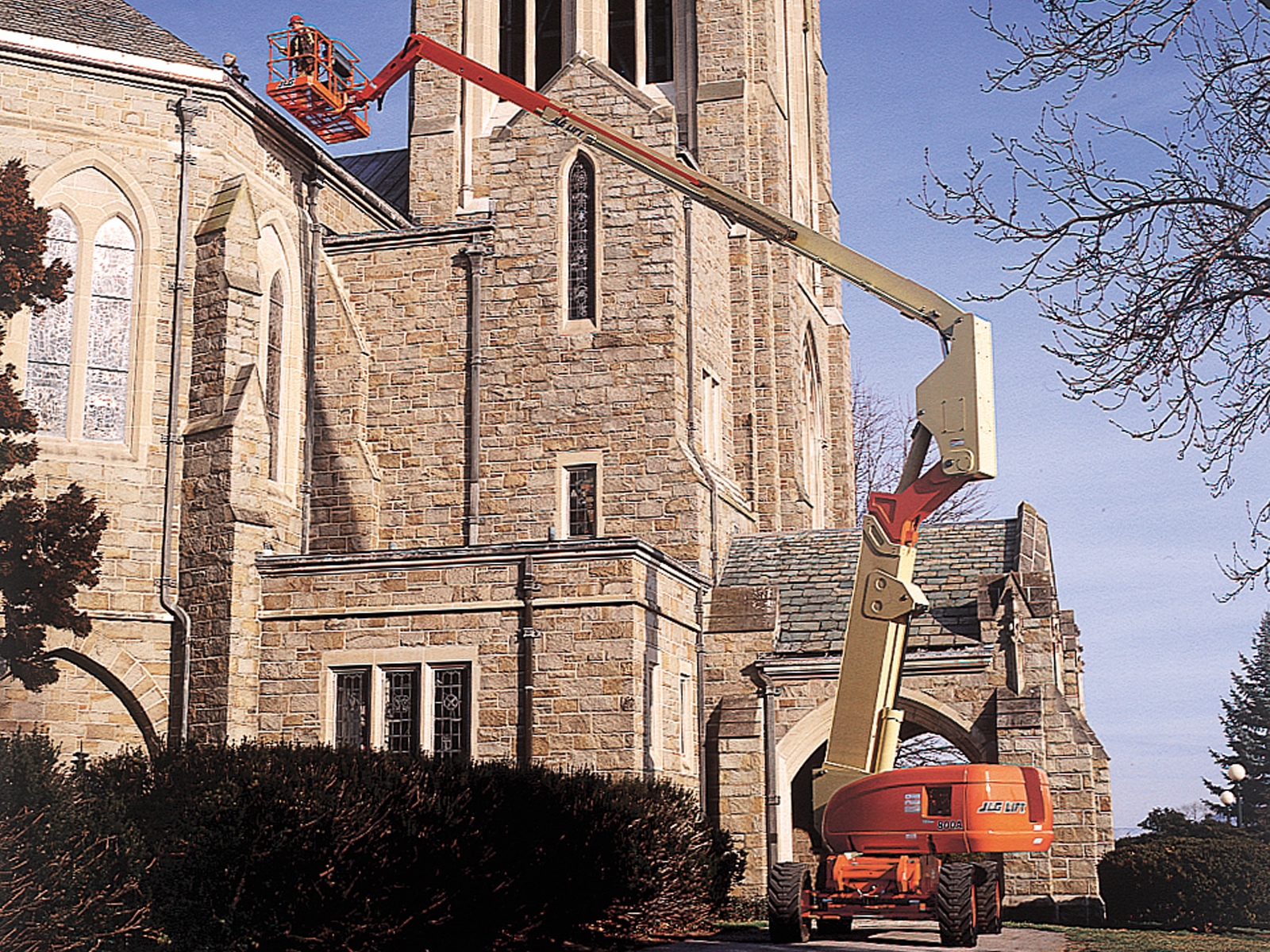

800A JLG

  • Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions
  • Get the extra reach and versatility you need with the best reach envelope in the industry
  • With Workstation in the Sky®  accessories, you will have all you need to get the job done
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 0 in. / 0 mm
  • Capacity – Fuel Tank: 39 gal. / 147.63 L
  • Capacity – Hydraulic Reservoir: 40 gal. / 151.42 L
  • Drive Speed – 2WD: 3 mph / 4.83 km/h
  • Drive Speed – 4WD: 3 mph / 4.83 km/h
  • Engine Type – Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
  • Engine Type – Dual Fuel: GM Vortec 3000 MPR, 82 hp
  • Gradeability – 2WD: 30 %
  • Gradeability – 4WD: 45 %
  • Ground Bearing Pressure: 76 psi / 5.32 Kg/cm2
  • Ground Clearance: 1 ft / 0.3 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 53 ft / 16.15 m
  • Machine Height: 9 ft 10 in. / 3 m
  • Machine Length: 36 ft 11 in. / 11.25 m
  • Machine Weight: 34300 lb / 15558.22 kg
  • Machine Width: 8 ft 2 in. / 2.49 m
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 80 ft / 24.38 m
  • Platform Height: 80 ft / 24.38 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tailswing: 2 ft 6 in. / 0.76 m
  • Tire Size: 18 x 19.5 Wide Lug Tread
  • Turning Radius – Outside (2WS): 22 ft 6 in. / 6.86 m
  • Turning Radius – Outside (4WS): 14 ft 6 in. / 4.42 m
  • Up and Over Height: 32 ft 1 in. / 9.78 m
  • Vertical Jib Rotation: 0 Degrees
Details

On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. Larger work envelopes provide you with access to those hard-to-reach places.

Equipment Type
Aerial Lifts / Articulating Booms
