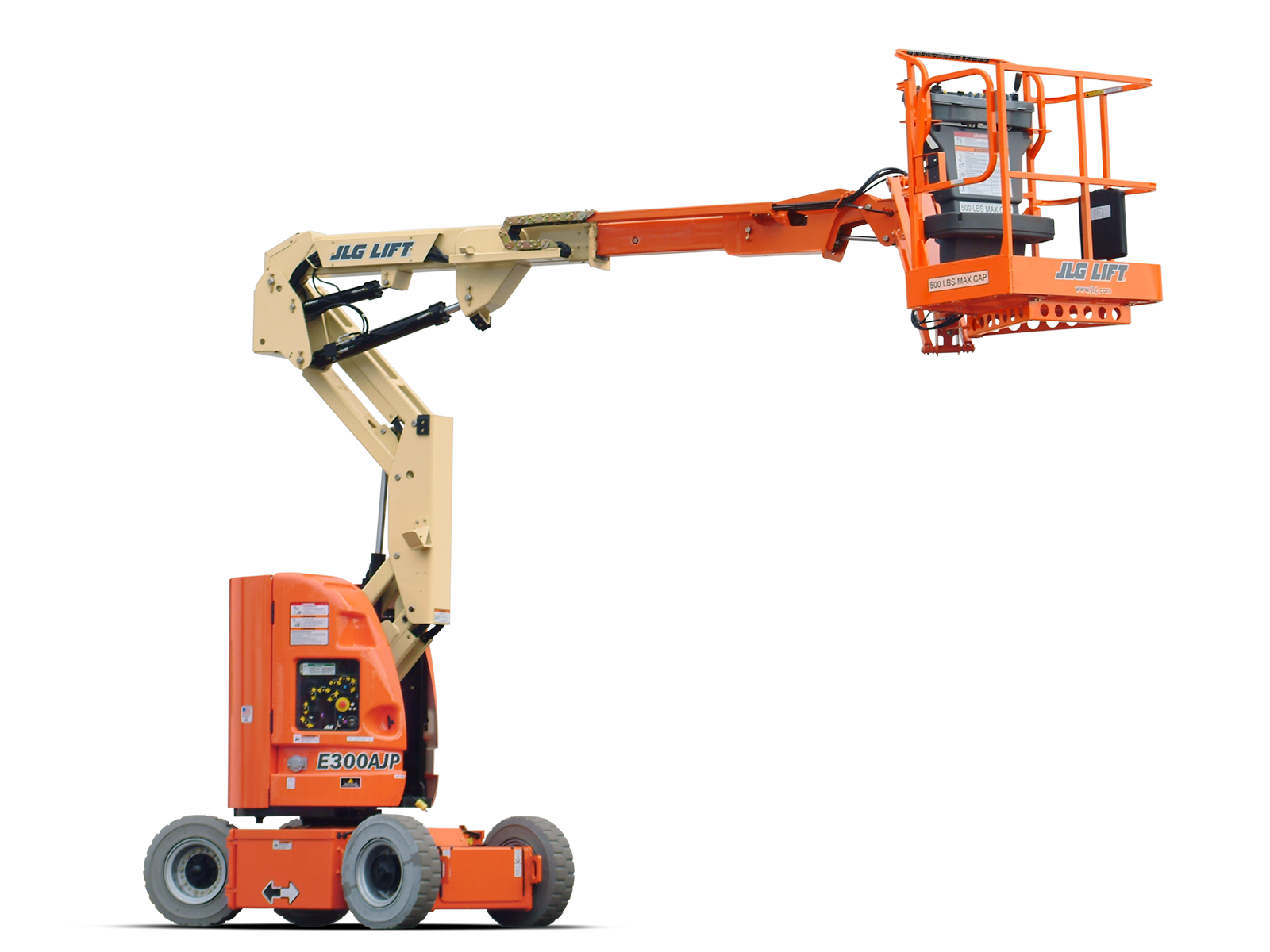

E300AJP JLG

  • Environmentally friendly – zero emissions
  • Maneuverability – move over uneven surfaces with the Automatic Traction Control option
  • Productivity – longer with longer duty cycles
  • Versatility – three options and three different chassis widths to fit any workspace
  • Accessibility – up and over access, optional jib
  • Batteries: 8 x 6V, 305 amp-hr
  • Capacity – Hydraulic Reservoir: 2 gal. / 7.95 L
  • Drive Speed – Platform Lowered: 3 mph / 4.83 km/h
  • Electrical System: 48 Volts DC
  • Gradeability – 2WD: 25 %
  • Ground Clearance: 4 in. / 0.1 m
  • Horizontal Jib Rotation: 180 Degrees
  • Horizontal Outreach: 20 ft 1 in. / 6.12 m
  • Machine Height: 6 ft 7 in. / 2.01 m
  • Machine Length: 18 ft 10 in. / 5.74 m
  • Machine Weight: 15400 lb / 6985.32 kg
  • Machine Width: 4 ft / 1.22 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 4 ft / 1.22 m
  • Platform Height: 29 ft 5 in. / 8.97 m
  • Platform Height: 29 ft 5 in. / 8.97 m
  • Swing: 350 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: Zero
  • Tire Size: 25 x 7 x 12 Non-marking
  • Turning Radius – Outside: 10 ft 2 in. / 3.1 m
  • Up and Over Height: 13 ft 2 in. / 4.01 m
  • Vertical Jib Rotation: 144 Degrees
  • Wheelbase: 5 ft 5 in. / 1.65 m
Details

Today, more people are demanding environmentally friendly equipment. And more municipalities are requiring “green” building for new construction and renovations. The JLG line of electric boom lifts feature longer run time, greater uptime and higher productivity. These machines are specifically designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions.

Equipment Type
Aerial Lifts / Articulating Booms
