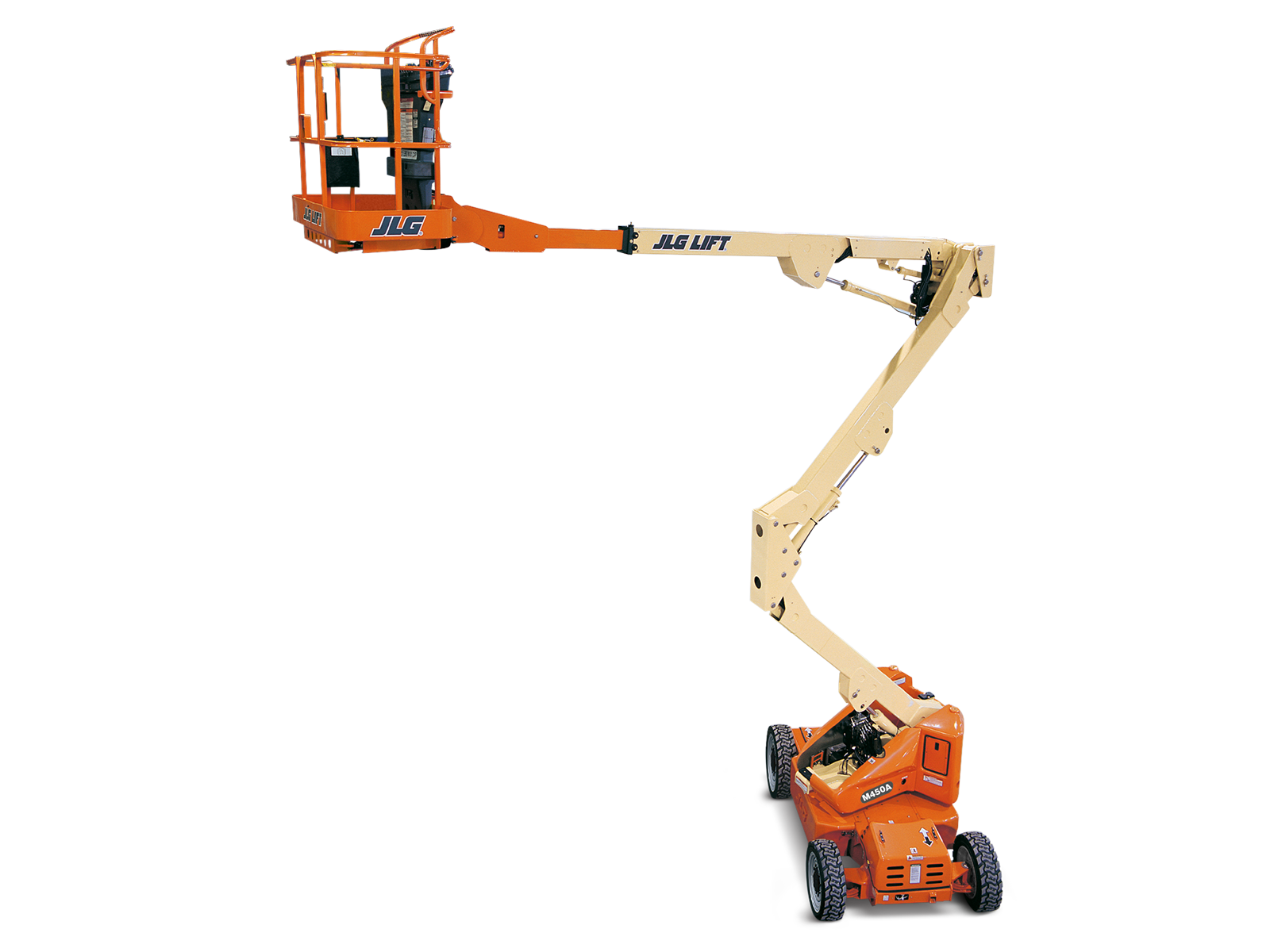

M450AJ JLG

  • Productivity – work longer with longer duty cycles
  • Accessibility – up and over access, optional jib
  • Environmentally friendly – zero emissions
  • Versatility – Three platform heights and jib and non-jib options; three chassis widths to fit any workspace; electric or multi-fuel
  • Maneuverability – move over uneven surfaces with the Automatic Traction Control option
  • Batteries: 8 x 6V, 370 amp-hr
  • Capacity – Hydraulic Reservoir: 4 gal. / 15.14 L
  • Drive Speed – Platform Lowered: 3.20 mph / 5.15 km/h
  • Electrical System: 48 Volts DC
  • Generator / Engine – Brand: Kubota
  • Generator / Engine – Fuel Tank Capacity: 4 gal. / 15.14 L
  • Generator / Engine – Fuel Type: Diesel
  • Generator / Engine – Horsepower / Kilowatts: 7 hp / 5 kW
  • Gradeability – 2WD: 30 %
  • Ground Clearance: 9 in. / 0.22 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 23 ft 9 in. / 7.24 m
  • Machine Height: 6 ft 7 in. / 2.01 m
  • Machine Length: 21 ft 2 in. / 6.45 m
  • Machine Weight: 14700 lb / 6667.81 kg
  • Machine Width: 5 ft 9 in. / 1.75 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 5 ft / 1.52 m
  • Platform Height: 45 ft / 13.72 m
  • Platform Height: 45 ft / 13.72 m
  • Swing: 260 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: Zero
  • Tire Size: 240/55-17.5 Pnuematic
  • Turning Radius – Outside: 10 ft 4 in. / 3.15 m
  • Up and Over Height: 25 ft 3 in. / 7.7 m
  • Vertical Jib Rotation: 141 Degrees
  • Wheelbase: 6 ft 7 in. / 2.01 m
Details

Today, more people are demanding environmentally friendly equipment. And more municipalities are requiring “green” building for new construction and renovations. The JLG line of electric boom lifts feature longer run time, greater uptime and higher productivity. These machines are specifically designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions.

Equipment Type
Aerial Lifts / Articulating Booms
