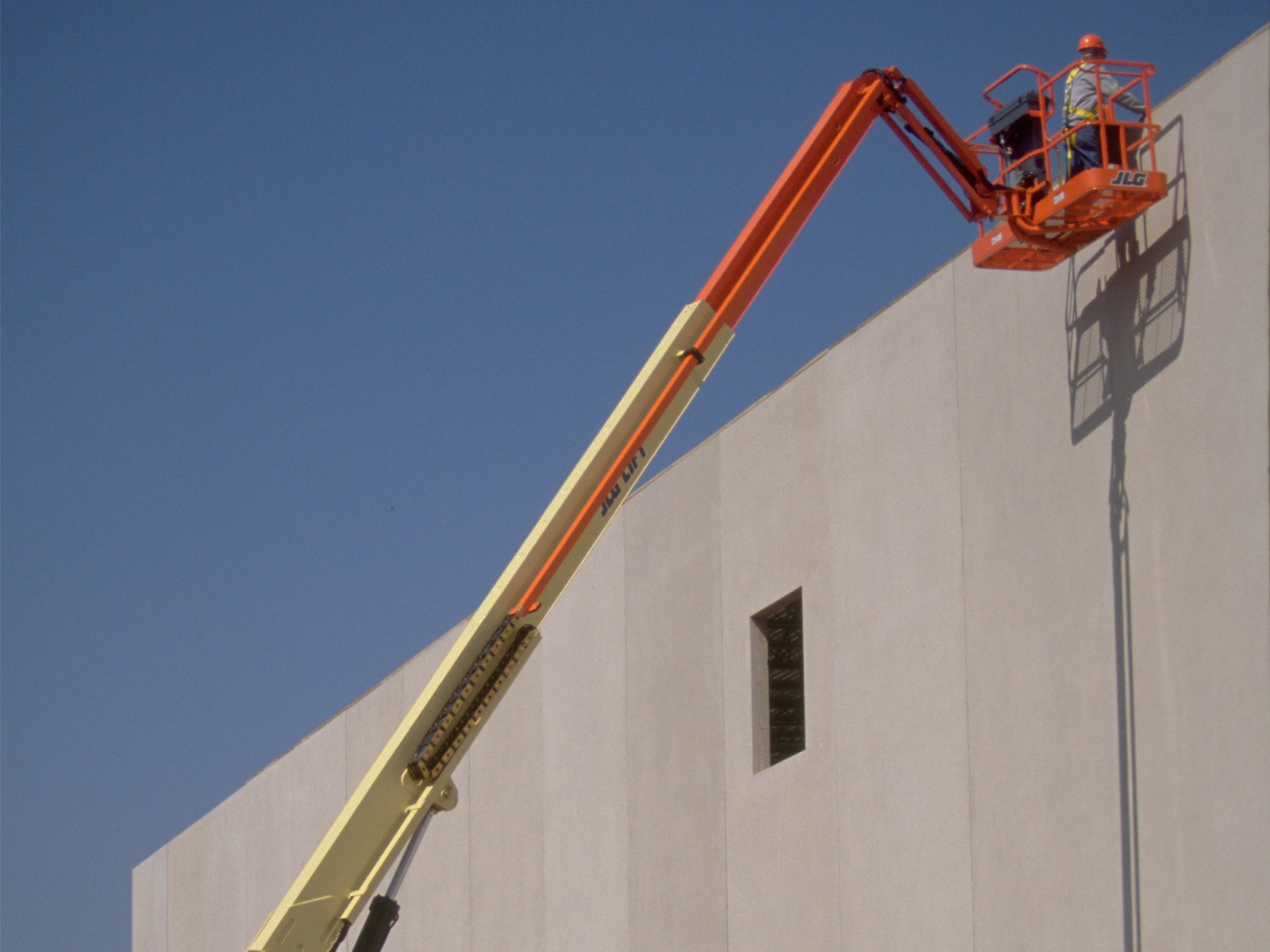

M600JP JLG
- Productivity – work longer with longer duty cycles
- Highest electric boom in the industry
- Environmentally friendly – zero emissions, reduced noise and standard non-marking tires
- Maneuverability – move over uneven surfaces with the Automatic Traction Control option
- Batteries: 8 x 6V, 415 amp-hr
- Capacity – Hydraulic Reservoir: 15 gal. / 56.78 L
- Drive Speed – Platform Lowered: 3 mph / 4.83 km/h
- Electrical System: 48 Volts DC
- Generator / Engine – Brand: Kubota
- Generator / Engine – Fuel Tank Capacity: 13 gal. / 49.21 L
- Generator / Engine – Fuel Type: Diesel
- Generator / Engine – Horsepower / Kilowatts: 7 hp / 5 kW
- Gradeability – 2WD: 30 %
- Gradeability – 4WD: 45 %
- Ground Clearance: 1 ft / 0.3 m
- Horizontal Jib Rotation: 180 Degrees
- Horizontal Outreach: 44 ft 5 in. / 13.54 m
- Machine Height: 8 ft 4 in. / 2.54 m
- Machine Length: 33 ft 4 in. / 10.16 m
- Machine Weight: 16050 lb / 7280.16 kg
- Machine Width: 7 ft 11 in. / 2.41 m
- Platform Capacity: 500 lb / 226.80 kg
- Platform Dimension A: 2 ft 6 in. / 0.76 m
- Platform Dimension B: 6 ft / 1.83 m
- Platform Height: 60 ft 4 in. / 18.39 m
- Platform Height: 60 ft 4 in. / 18.39 m
- Swing: 400 Degrees
- Swing Type: Non-Continuous
- Tailswing: 4 ft / 1.22 m
- Tire Size: 36 x 14-22.5 Non-marking Pnuematic
- Turning Radius – Outside: 15 ft 4 in. / 4.67 m
- Vertical Jib Rotation: 145 Degrees
- Wheelbase: 9 ft / 2.74 m
Details
Today, more people are demanding environmentally friendly equipment. And more municipalities are requiring “green” building for new construction and renovations. The JLG line of electric boom lifts feature longer run time, greater uptime and higher productivity. These machines are specifically designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions.
- Equipment Type
- Aerial Lifts / Articulating Booms
