T32E JLG

  • AC direct electric drive for longer battery life and more duty cycles
  • Completely redesigned with 80% fewer hoses and fittings
  • Articulating telescopic jib and vertical telescopic mast
  • Batteries: 48V – 260 A/hr
  • Capacity – Hydraulic Reservoir: 4 gal. / 14.99 L
  • Drive Speed – Platform Lowered: 3.40 mph / 5.47 km/h
  • Electrical System: 48 Volts DC
  • Gradeability – 2WD: 25 %
  • Ground Clearance: 4 in. / 0.1 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 15 ft 1 in. / 4.6 m
  • Machine Height: 6 ft 7 in. / 1.99 m
  • Machine Length: 11 ft 10 in. / 3.61 m
  • Machine Weight: 9480 lb / 4300.06 kg
  • Machine Width: 3 ft 11 in. / 1.19 m
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 4 in. / 0.7 m
  • Platform Dimension B: 3 ft 5 in. / 1.05 m
  • Platform Height: 32 ft 3 in. / 9.83 m
  • Platform Height: 32 ft 3 in. / 9.83 m
  • Swing: 360 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: 6 in. / 0.15 m
  • Tire Size: 18 x 7 x 12.12 Non-marking
  • Turning Radius – Outside: 8 ft 6 in. / 2.59 m
  • Up and Over Height: 22 ft 9 in. / 6.93 m
  • Vertical Jib Rotation: 120 Degrees
  • Wheelbase: 5 ft 3 in. / 1.6 m
Details

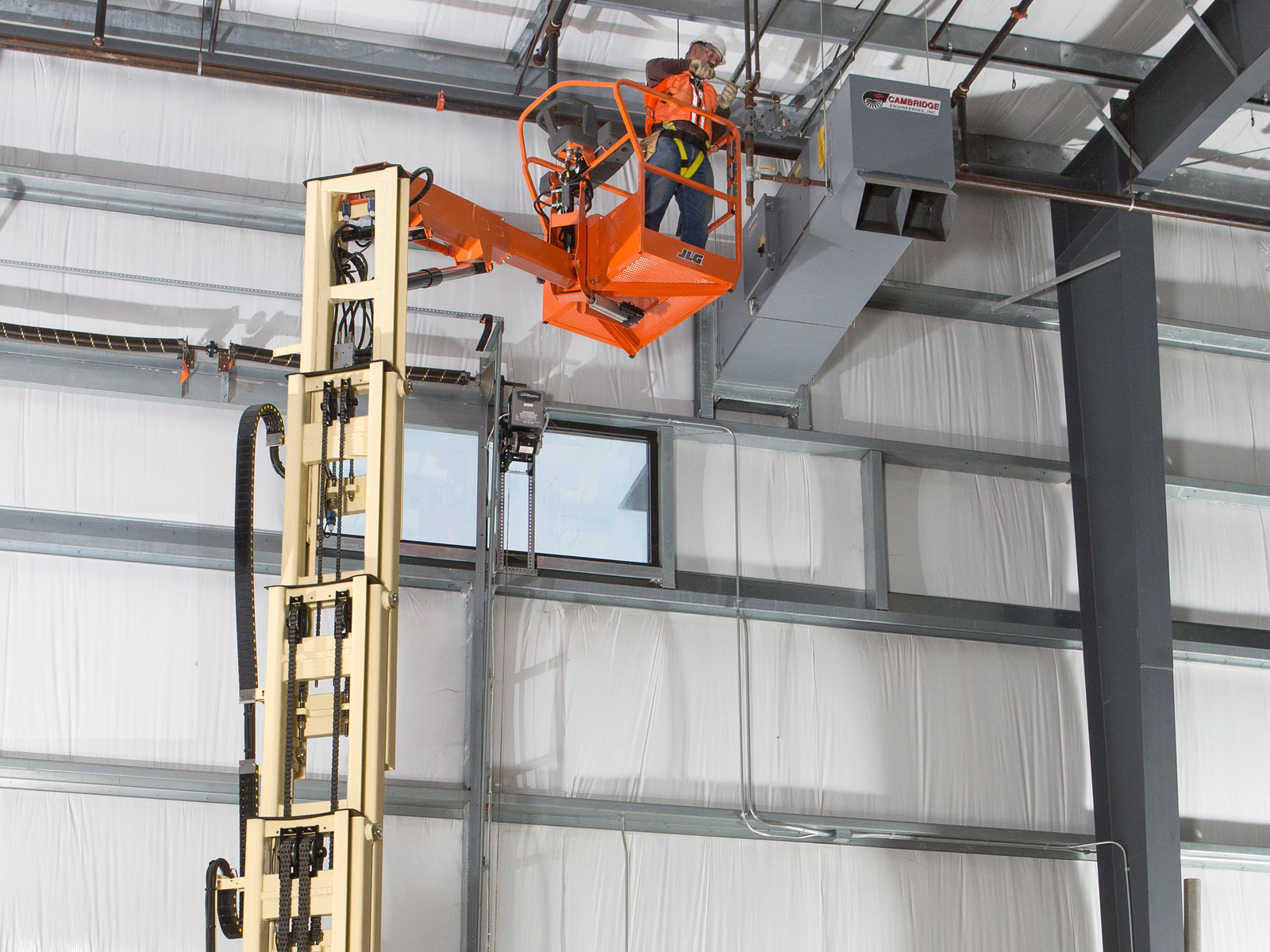

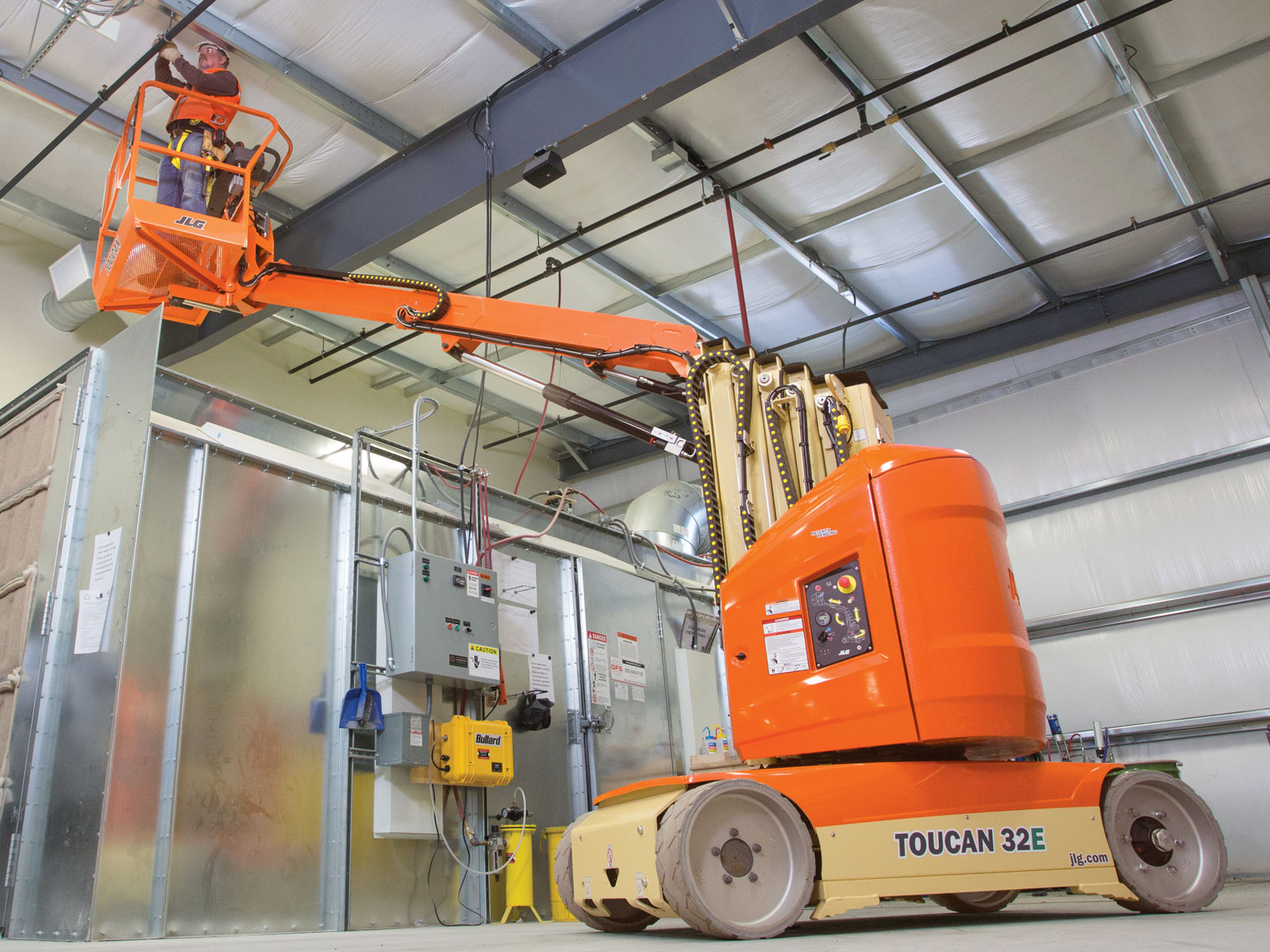

With the JLG Toucan® vertical mast lift, you can meet your overhead challenges head-on. Work up, over and around assembly lines, shelving, ductwork or partitions more easily and without interferences. These mast boom lifts feature thick rubber non-marking tires, clean and efficient electric power and 25% gradeability.

Equipment Type
Aerial Lifts / Articulating Booms
