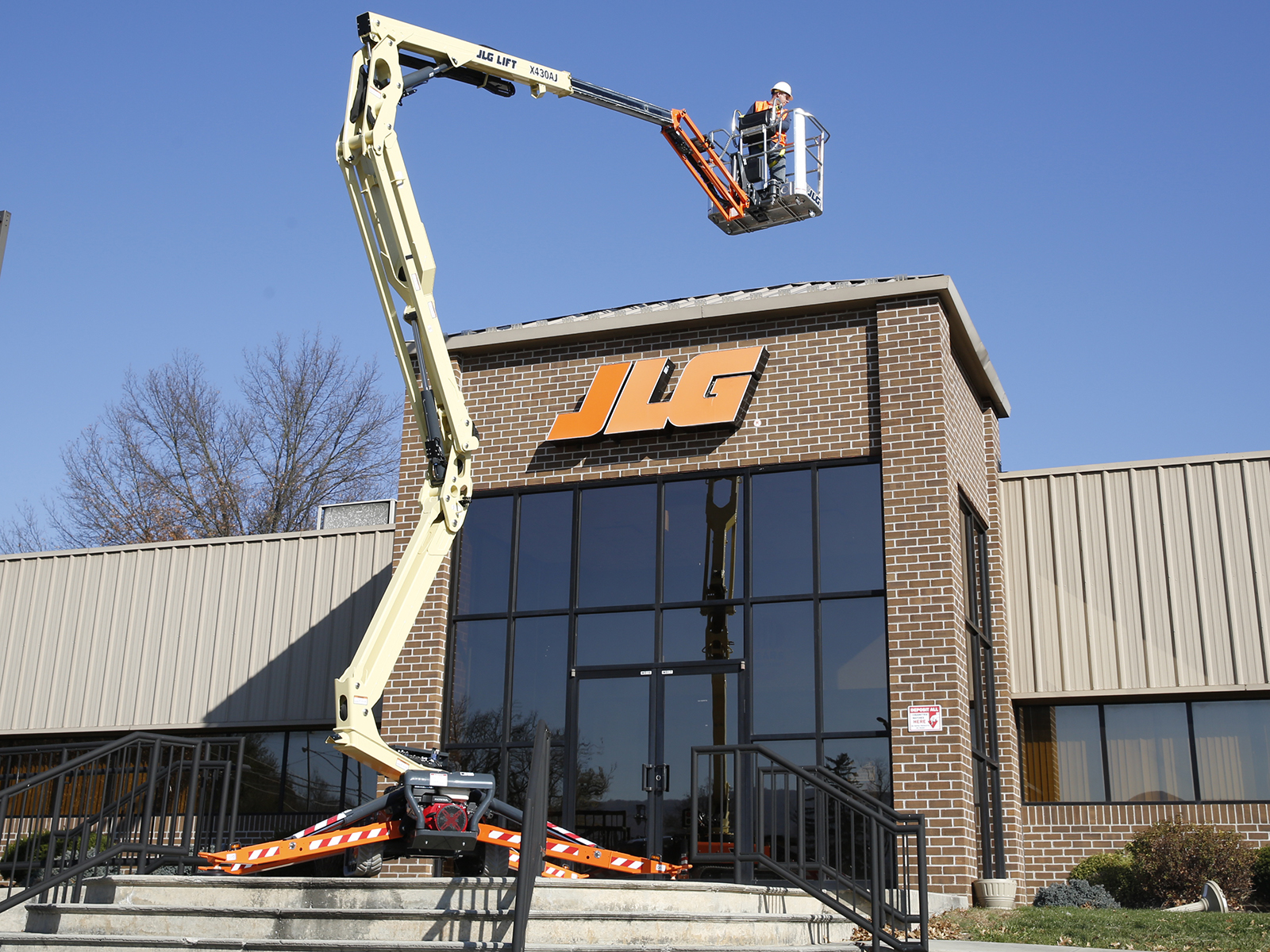

X430AJ JLG
Key Specs
- Machine Width: 2 ft 5 in. / 0.74 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Best in Class – Outstanding horizontal reach with a 500 lb unrestricted platform capacity
- Quiet, Clean Operation – Lithium-ion 2.0 power system is eco-friendly without sacrificing performance
- Easy to Transport – Easily lifted by a forklift or crane thanks to forklift pockets and lifting eyes
- Best in Class – Outstanding horizontal reach with a 500 lb unrestricted platform capacity
- Easy to Transport – Easily lifted by a forklift or crane thanks to forklift pockets and lifting eyes
- Quiet, Clean Operation – Lithium-ion 2.0 power system is eco-friendly without sacrificing performance
- Engine Type – Electric: 100Ah 36 V Lithium-Ion
- Engine Type – Gasoline: Honda iGX390
- Fuel Tank Capacity – Gasoline: 1.4 gal. / 5.30 L
- Gradeability: 28 %
- Ground Bearing Pressure – Outriggers: 34.1 psi / 2.39 Kg/cm2
- Horizontal Outreach: 21 ft 7 in. / 6.58 m
- Jib – Range of articulation: 89 Degrees
- Machine Height: 6 ft 6 in. / 1.98 m
- Machine Length: 13 ft 2 in. / 4.01 m
- Machine Weight: 4392 lb / 1992.18 kg
- Machine Width: 2 ft 5 in. / 0.74 m
- Outrigger Footprint Length: 9 ft 2 in. / 2.79 m
- Platform Capacity – Restricted: 500 lb / 226.80 kg
- Platform Dimension A: 4 ft 10 in. / 1.47 m
- Platform Dimension B: 2 ft 6 in. / 0.76 m
- Slope Tolerance: 12 °
- Swing: 360 Degrees
- Swing Type: Non-Continuous
- Track Length: 4 ft 1 in. / 1.24 m
- Working Height: 50 ft / 15.24 m
Details
- Equipment Type
- Aerial Lifts / Articulating Booms
