C-Series 5,000 – 8,000 lbs Master Craft

  • 4 Cylinder Cat C4.4 ACERT Engine

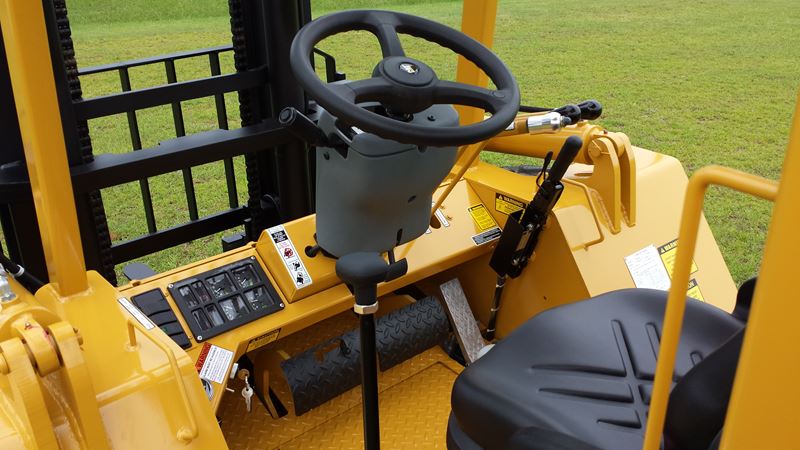

  • 2-position tilt steering wheel
  • Standard open 4-post 360 degree viewable area

Models

Item # Lift Capacity Wheel Drive
C-05-10106 5,000 lbs. 2WD
C-05-10116 5,000 lbs. 4WD
C-06-10106 6,000 lbs. 2WD
C-06-10116 6,000 lbs. 4WD
C-08-10106 8,000 lbs. 2WD
C-08-10116 8,000 lbs. 4WD
  • Capacity: 5,000 – 8,000 lbs
  • Mast Height Range: 10-24′
  • Standard Carriage: 60″
  • Standard Mast Tilt: 38F-9R
  • Total Mast Side Shift: 6″
  • Wheel Drive: 2WD or 4WD
  • C-Series Brochure
Details

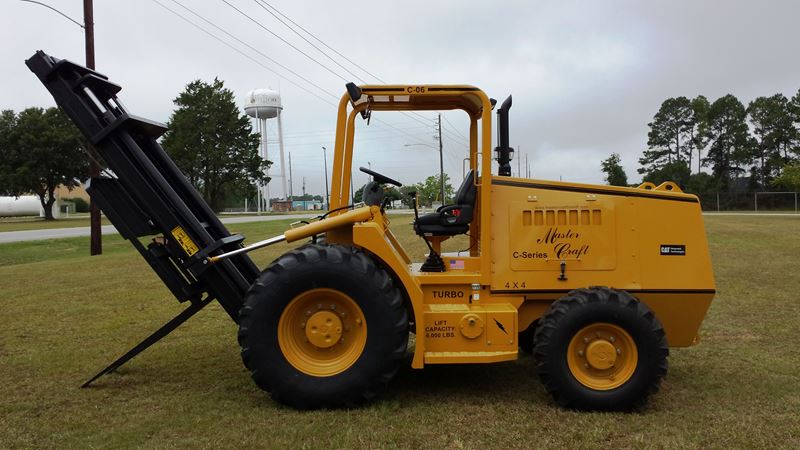

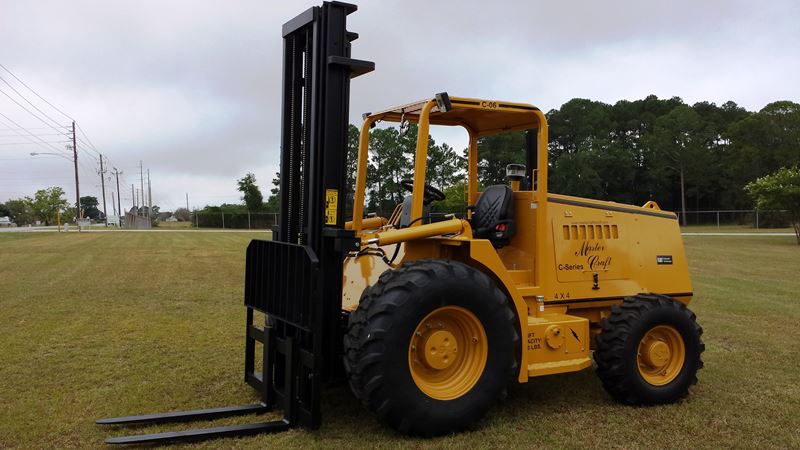

The C-Series 2WD and 4WD rough terrain forklifts are made specifically for off road industrial applications. The C-Series 5,000 thru 12,000 lb rough terrain forklifts are powered by the Caterpillar 416E tractor loader backhoe power module. The engine is a C4.4 direct-injected liter turbocharged and charge air cooled engine coupled with a Caterpillar 4 x 4 fully synchromesh transmission, Caterpillar drive axle, and both 2WD and 4WD models comes with a Caterpillar steer axle.

All Master Craft forklifts have a 12 month or 2000 hour warranty from defects in material and workmanship. The Caterpillar power train module in the 5,000 thru 12,000 lb forklifts is warranted through Caterpillar by a 2 year or 3000 hour warranty.

Equipment Type
Rough Terrain / Specialty Forklifts
