MC-Series 14,000 – 20,000 lbs Master Craft

  • Deluxe suspension adjustable seat
  • Anti-slip differential lock
  • Double steer cylinders for more precise and controlled steering
  • Perkins 1104D-E44TA turbo diesel engine or Caterpillar C4.4 turbo diesel engine


Item # Lift Capacity Wheel Drive
MC-14-374 14,000 lbs. 4WD
MC-14-974 14,000 lbs. 4WD
MC-16-374 16,000 lbs. 4WD
MC-16-974 16,000 lbs. 4WD
MC-18-374 18,000 lbs. 4WD
MC-18-974 18,000 lbs. 4WD
MC-20-374 20,000 lbs. 4WD
MC-20-974 20,000 lbs. 4WD
  • Capacity: 14,000 – 20,000 lbs
  • Mast Height Range: 12-18′ or 12-16′
  • Standard Carriage: 60″
  • Total Mast Side Shift: 2″
  • Wheel Drive: 4WD

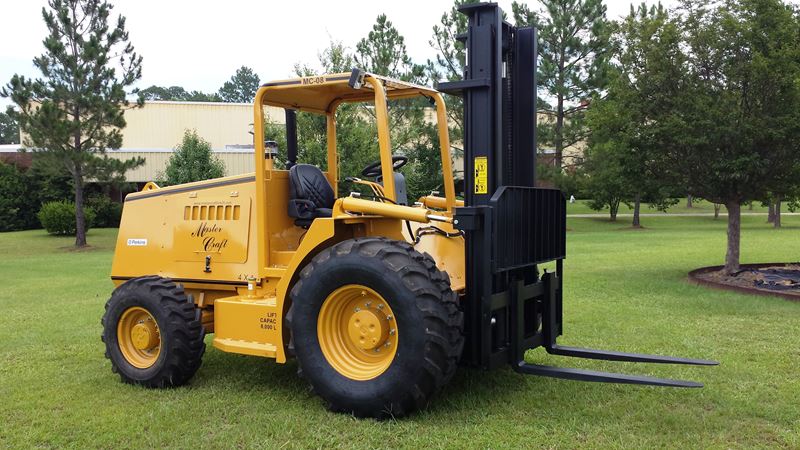

The Master Craft forklift offers a variety of accessories ideal for working in a rough terrain environment, including differential lock, optional 4WD, independent braking (allows for a tighter turning radius), and a lift capacity ranging from 5,000 thru 20,000 lbs.

Master Craft 14,000 thru 20,000 lb forklifts come with either a Perkins 1104D-44T turbocharged diesel engine or a Caterpillar direct-injected C4.4 turbocharged and charge air cooled diesel engine, ITL 4 speed powershift 4 x 4 transmission, Carraro drive axle and an ITL 4WD steer axle.

All Master Craft forklifts have a 12 month or 2000 hour warranty from defects in material and workmanship.


Equipment Type
Rough Terrain / Specialty Forklifts
