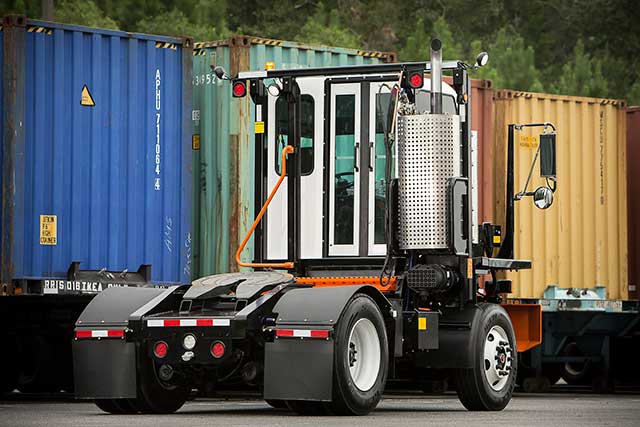

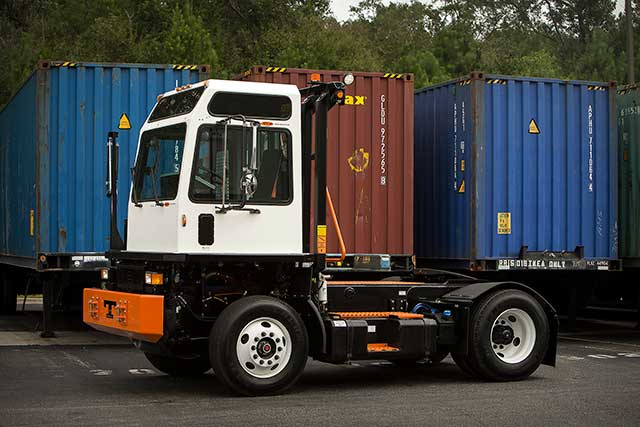

Pro-Spotter On-Road Tico

  • Maximizing Asset Utilization & Tractor Performance
  • Generating Low Life-Cycle Costs
  • Providing Production Customization for Applications Which Meet Your Needs
  • AIR AND TRAILER EQUIPMENT: Nylon Chassis Hoses (3) Painted Steel Air Tanks Manual Air Tank Drain Valves with Wet Tank Drain on Left Side Frame Rail Glad-Hands, Color Coded *15 foot Straight Rubber Air Lines 7 Wire Trailer Socket and Cable *ABS standard 45 degree Glad Hand Bucket
  • BATTERY BOX: Painted Steel Battery Box Rubber Matting on Top and Bottom of Battery Box Interior
  • CAB AND EQUIPMENT: Fiberglass Composite Cab with Extended Head Room Sealed Front of Cab PDC with Easy Access Panels Dual Air-Bag Cab Suspension Electric/Hydraulic Cab Lift with Integral Cover Bolt-on Right Side Galvanized Mirror Stanchion Dual West Coast Mirrors 118 Inches Wide 3 Point Orange Seat Belt with “Komfort” Latch Bostrom Baja Air-Ride Vinyl Seat with Left Side Swing Up Arm Rest *Sun Visor, Transparent Laminated Front Windshield *66” H x 27.5” W Door Opening, Dual Air-Operated Transparent Rear Doors (Poly Carbonate) Power (Up/Down) Driver Side Window Rear Window Behind Driver 18” Cushioned Grip Tilt Steering Wheel Heavy Duty Rubber Floor Mat with Sound and Heat Reduction Properties 49,000 BTU Fresh Air Heater with Integral Defroster Electric Horn All Steel Dash Assembly with CANBUS Electronic Gauge Clusters Fuse Breaker Box on Side of Dash for Easy Access *Glove Box on Right Side of Cabin 2-Speed Intermittent Electric Windshield Wipers with Pantograph Style Arms Air Pressure Gauge Mounted on Dash Hour Meter Mounted on Side of Cab Keyed Ignition Mounted on Dash (1) LED Flood Light Mounted on Cab Protection Bar Facing Rearward (2) LED Spot Lights Mounted On Top of Cab Protection Bar Dash “LED” Warning Lights/Displays with Dimmer Speedometer LED Turn Signals ICC LED Cab Clearance Lights Headlights with High Beam and Tail Lights Fuel and DEF Gauges in Dash Coolant Temperature Gauge In Dash Oil Pressure Gauge In Dash Low Air Warning Buzzer LED Dome Light
  • ENGINE AND ENGINE EQUIPMENT: Cummins 2017-B6.7 – 200HP@2400RPM, 520lb./ft.@1500RPM Cummins After Treatment with SCR and DPF Maximum Vehicle Speed at Rated RPM 40 MPH Low Oil Pressure Sensor High Coolant Temperature Sensor Dual Group 31, 730 CCA Threaded Stud, Battery Direct Drive Fan Hub Wabco 18.7 CFM Air Compressor, Turbocharged Fleetguard Fuel/Water Separator Fleetguard Oil Filter *Radiator with Integral CAC, External Transmission Oil Cooler *Remote Surge Tank 4” Exhaust with Extended Turn-Out Vertical Exhaust Mounted *Inboard On Cab Protection Bar *Filter-Minder Mounted At Turbo *Heavy Duty Exhaust System Protection Alternator – 160 AMP
  • FRAME AND EQUIPMENT: 12” x 3” Formed Structural Steel Main Frame, Reinforced to 37 lb/ft 116” Wheel Base *Heavy Duty bolt on 18 Inch Bumper *20 Degree Rear Frame Taper for Easy Trailer Pick-up Rear Mud Flaps Behind Drive Axle *Quarter Fenders and Mud-flaps Behind Steer Axle Holland Model 3500, 70,000 lb Fifth Wheel Fifth Wheel Setting – 5” Forward of C/L of Rear Axle Air Release Fifth Wheel with Trailer interface Driver Side Access to Frame *Full Width and Height Cab Protection Bar with Integrated Trailer Stops Rear Light Bolt-On Plate Back Up Alarm *Noise and Heat Dampening System
  • FRONT AXLE AND EQUIPMENT: Arvin Meritor FF961 (12,000 lbs) *14,500 lb. Leaf Springs with Rubber Bushings Power Steering, Sheppard M-100 16” x 5” S-Cam Brakes Automatic Slack Adjusters Cast Brake Drums *Synthetic Lube
  • FUEL TANK: *65 Gallon Painted Steel Stair Tread® Tank with Non-Skid on Steps Tank Mounted on Driver Side Frame Rail
  • HYDRAULIC SYSTEM AND EQUIPMENT: *20 GPM Hydraulic Pump 5” Power Up and Down Lift Cylinders Single Hydraulic System for Fifth Wheel & Steering using Priority Valve *Heavy Duty Boxed Boom with 1-1/2” side arms Vented 18 gal. Hydraulic Tank with Sight Glass and shut off valves Cable Controlled Fifth Wheel Raise and Lower
  • PAINT: Cab Color – Gel Coat White Wheels – White Frame – Black with Zinc Primer
  • REAR AXLE AND EQUIPMENT: Arvin Meritor RS-24-160 30,000 lbs (7-17:1) Single Reduction Axle 16.5” x 7” Q-Series S-Cam Brakes Automatic Slack Adjusters Split Brake System, Parking Brakes on Rear Brakes *Synthetic Lube
  • TIRES AND WHEELS: 11 x R22.5 Tubeless Front and Rear Tires (Highway Tread) 22.5 x 8.25 Std. Offset Hub Piloted Wheels
  • TRANSMISSION AND DRIVELINE: Allison 3000 Gen V RDS 6-Speed Forward, 1-Speed Reverse 1710 Series Driveline and U-Joints Transmission ECU Chassis Mounted Aluminum Flywheel Housing Severe Service Flywheel/Transmission Mounts Push Button Electronic Shifter Synthetic Oil/4 Year Allison Transmission Warranty

Details

The TICO team stands behind every Pro-Spotter we build, and each one is designed to help your business grow.

Equipment Type
Tractors / Yard Spotters
